Plug Connectors

Twippo 372Pcs Waterproof Automotive Electrical Connectors Quick Connect Wire Connectors Automotive 1/2/3/4/5/6 Pin Connectors Kit (18 Sets)
E-mail Us PDF Download
【Prev Products】 【Next Products】
About this item

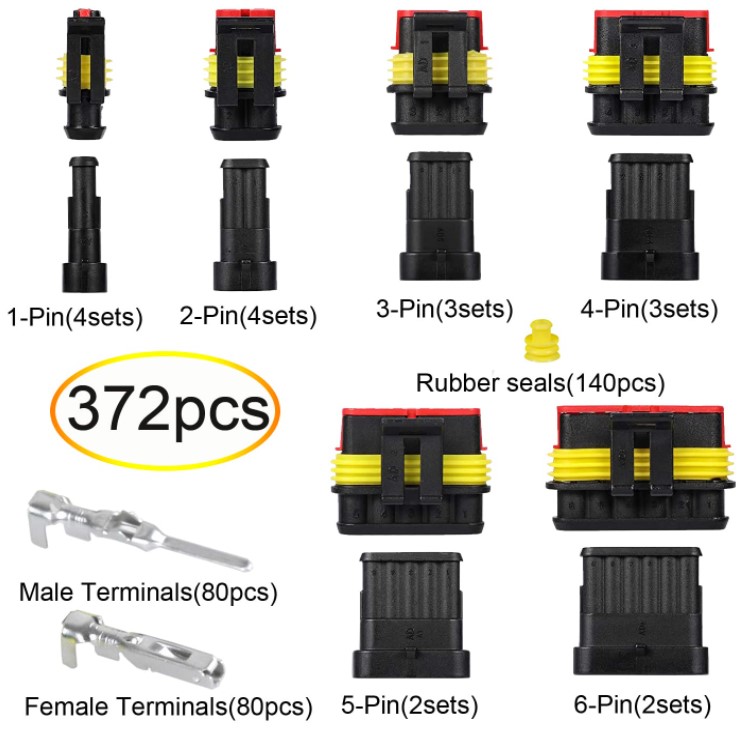

  • 【Package Content】(372Pcs/18Sets, 1 pin-4sets, 2 pin-4sets, 3 pin-3sets, 4 pin-3sets, 5 pin-2sets, 6 pin-2sets) Waterproof electrical connectors with male & female terminal and silicone rubber cable seal, 1-6 pin waterproof connectors: a total of 18 sets of automotive connectors waterproof are included, Ideal for 16-22 AWG wires.

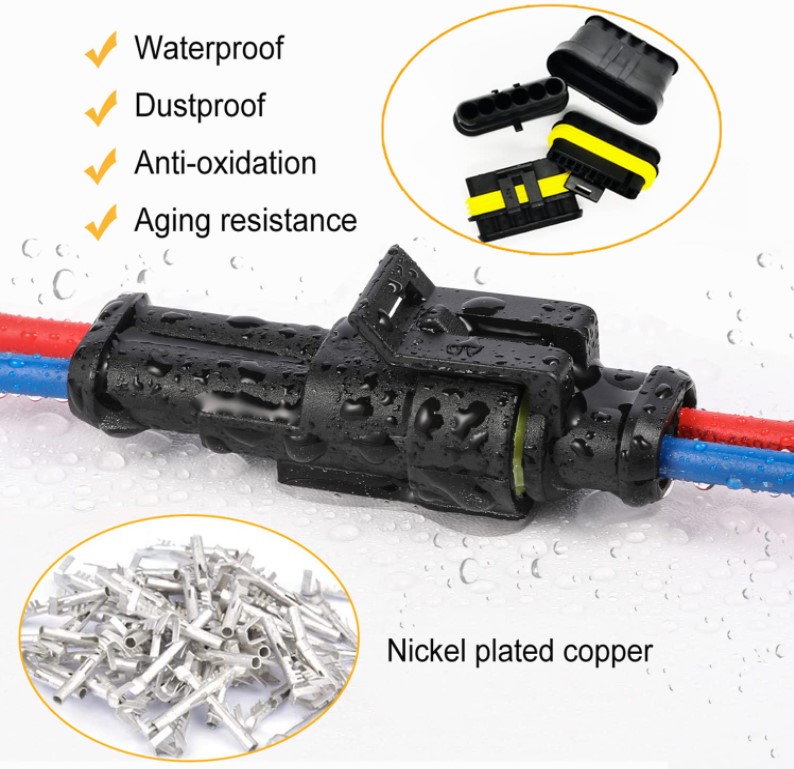

  • 【High Quality of Automotive Pin Connectors 】Automotive electrical connectors are made of high quality environmental-friendly materials, with high chemical stability, electrical conductivity, waterproof, dustproof and safe. Buckle design of gm electrical connectors ensures accurate and complete insertion of the contact in the housing and prevents it from slipping out of the wire harness connectors, can also be easily removed when needed.
  • 【Excellent Performance of Automotive Wire Connectors】The automotive connector kit terminals use high-precision copper plating process to improve conductivity, easy to install under soldering and crimping, reliable safe connection, no loose, and lightweight. Weather-pack connectors are perfect automotive replacement ignition plug connectors.
  • 【Widely Applications of Pin Connectors】wire connectors automotive are great for various 12v connectors of motorcycle, truck, marine, jet ski, scooter, car, and boat etc. Believe that our quick disconnect wire connectors can give you a great help.
  • 【Electronic Manual and Service Guarantee】Please download the operating instructions first before use.If you have any dissatisfaction with the quick connect wire connectors or the size of the pin trailer connector, we can offer you 365 days payment refund guarantee, we guarantee a 100% return and give you a full refund. Sincerely wish you a happy shopping!

Twippo 372Pcs Automotive Electrical Connectors

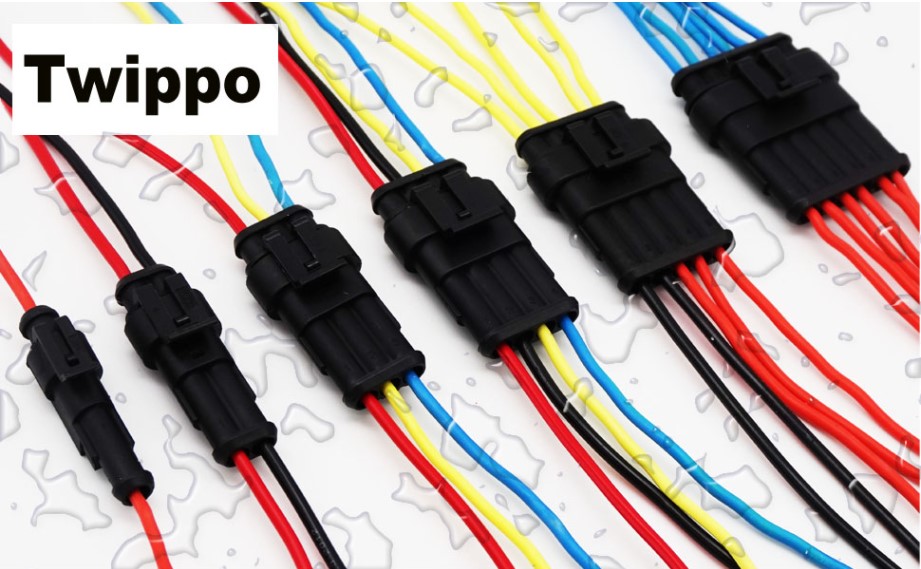

A total of 18 sets of automotive connectors waterproof are included, 1/2/3/4/5/6 Pin automotive electrical connector kit.

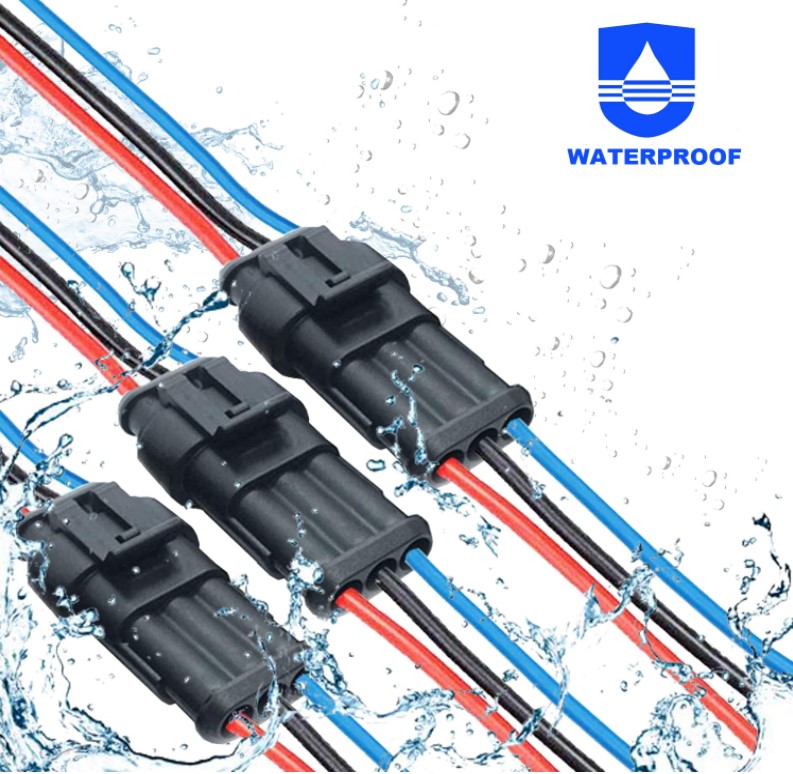

Waterproof electrical connectors, dustproof, waterproof, great for high sensing performance requirement electrical system.

Automotive waterproof connectors are suitable for motorcycle, car, truck, scooter, jet ski, boat, etc.

Features of waterproof electrical connectors:

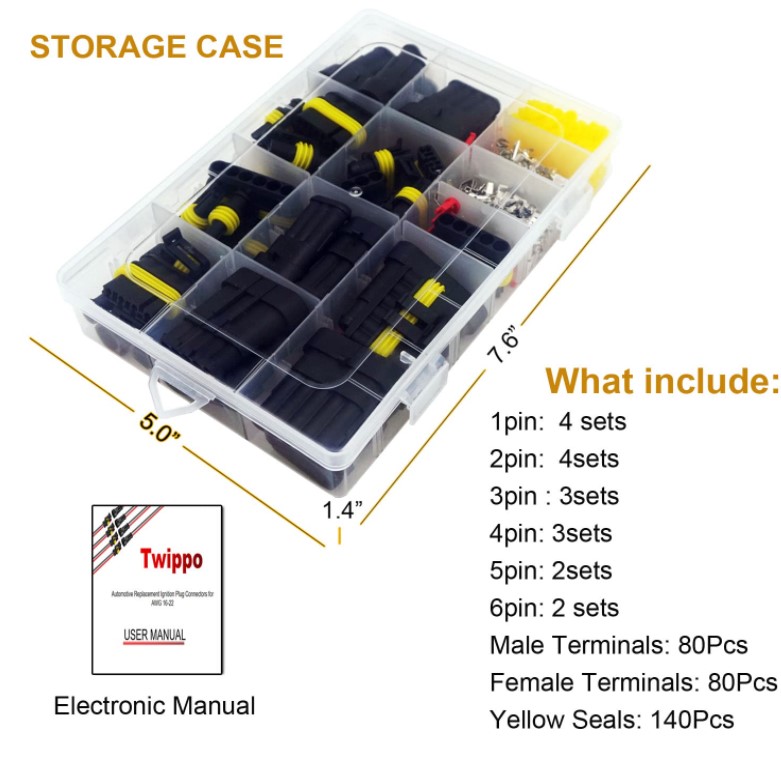

1. Package includes 372pcs kits, different types of quick connect electrical parts to meet different usage needs.

2. Conectores de cables electricos are made of high quality plastic material with good waterproof function, safety.

3. weather pack connectors kits are good tools for auto repair and reset, very suitable for home DIY and auto repair shop use.

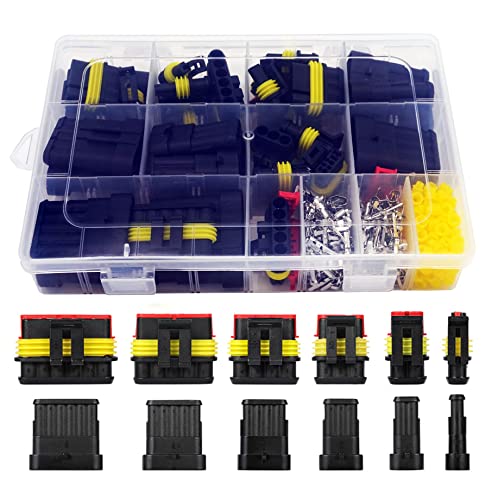

4. Male female wire connectors for cars are come with a compact and practical plastic box, convenient to carry and store in category, without taking up much storage space.

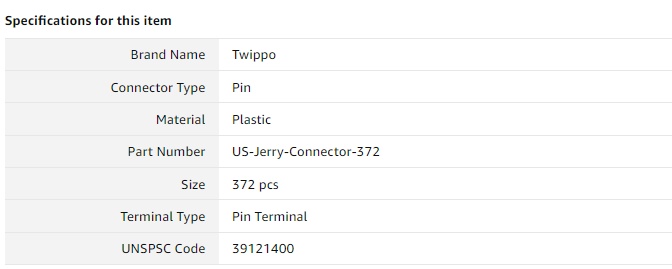

Specification of 12 volt connectors:

Material: Plastic + Copper

Voltage: 300V

Rated Current: 12A

Number of Stitches: 1/2/3/4/5/6 pin


  • Apply for AWG: 16-22 (1.3-0.3mm²)
  • Operating temperature : 14℉-176℉
  • Female/male connector hole diameter: 6mm/0.24"

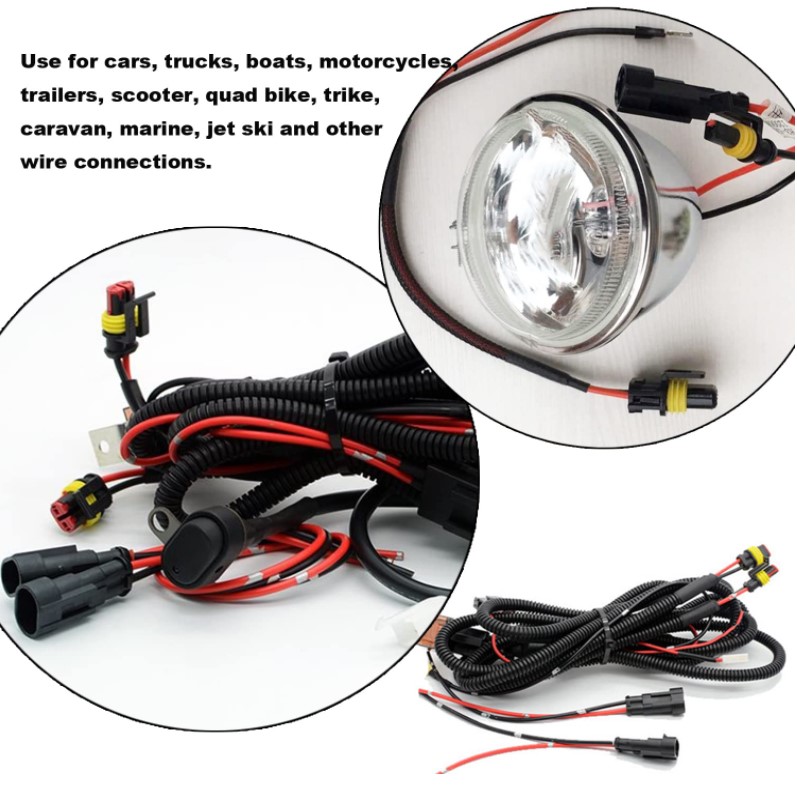

  • Use for cars, trucks, boats, motorcycles, trailers, scooter, quad bike, trike, caravan, marine, jet ski and other wire connections.

NOTE:

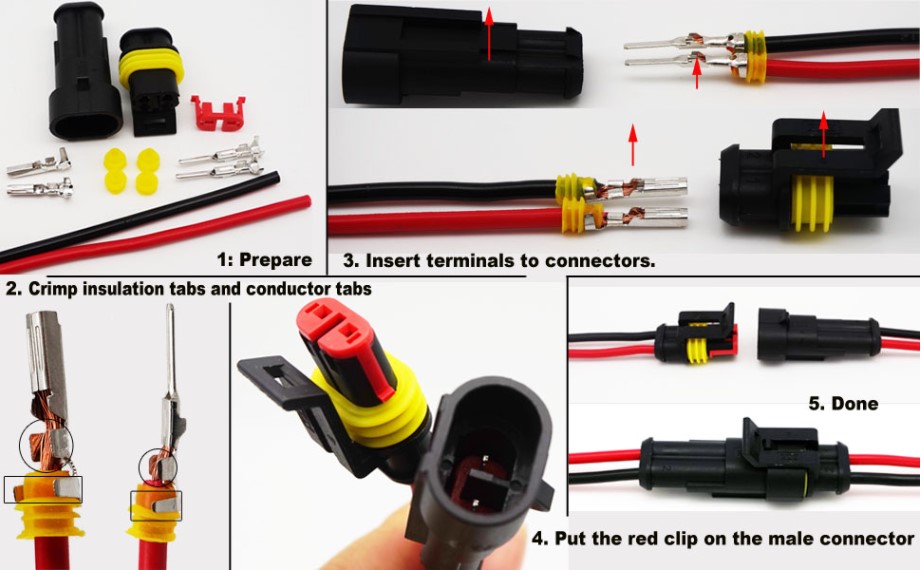

  • It is important to identify the insulation tabs, conductor tabs and wings on the terminals.


These wings work for locking the connectors. ***DON’T CRIMP WINGS***

Crimp conductor tabs to the stripped wires. Crimp insulation tabs to the insulated wires.

Don't deform the terminals (otherwise, the terminals and connectors will not be locked).


  • PULL TEST is very important.


Pull test to make sure that the terminals are crimpped well; If the terminals do not tight into the place, the wires will easily be pulled out from the connectors.

If you have troubles to crimp the terminals. The terminal crimping tool (Weather Pack Crimper) could help you tight the terminals on the wires very well.

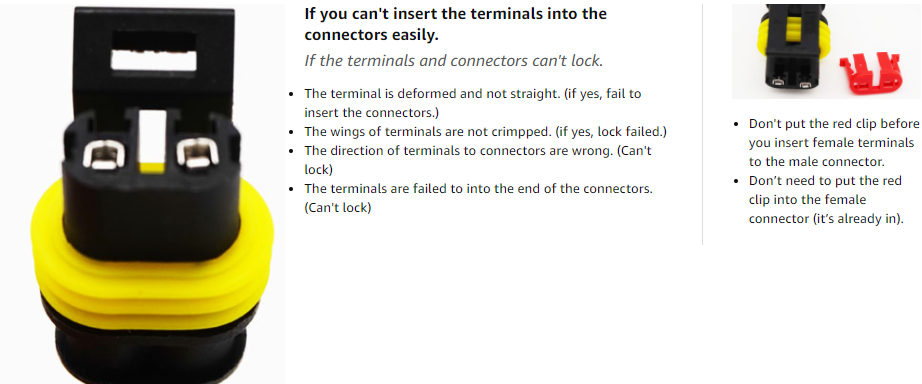

  • There is only one direction to insert terminals. (The way likes picture shows.)


The terminals lock the connector with a snap.

Once you insert terminals, they will not be pulled out again. If you put them to wrong direction, they will be pulled out easily.
