PCT-212

• Parameters
• Features

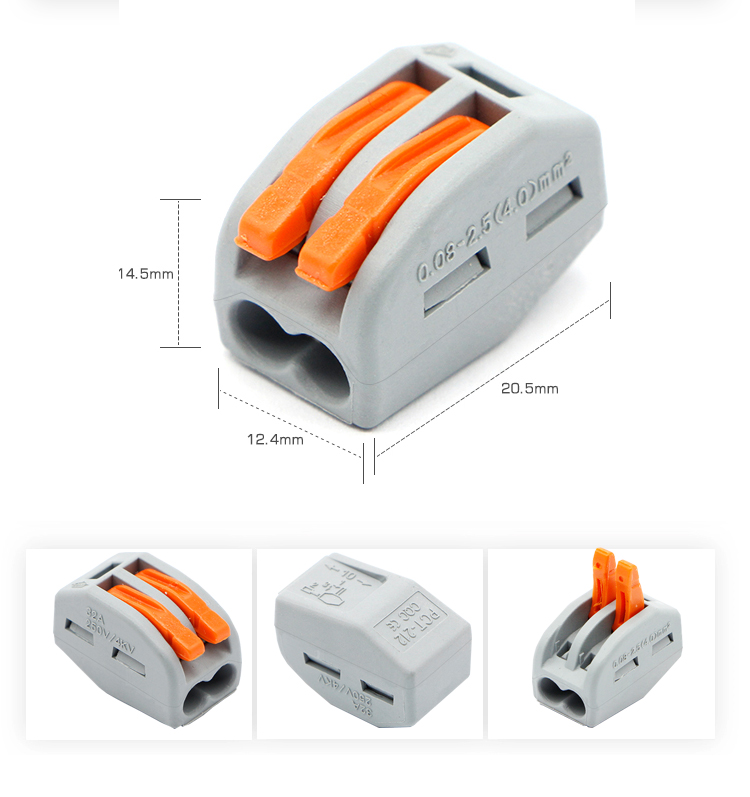

• Dimension Figure
• Package

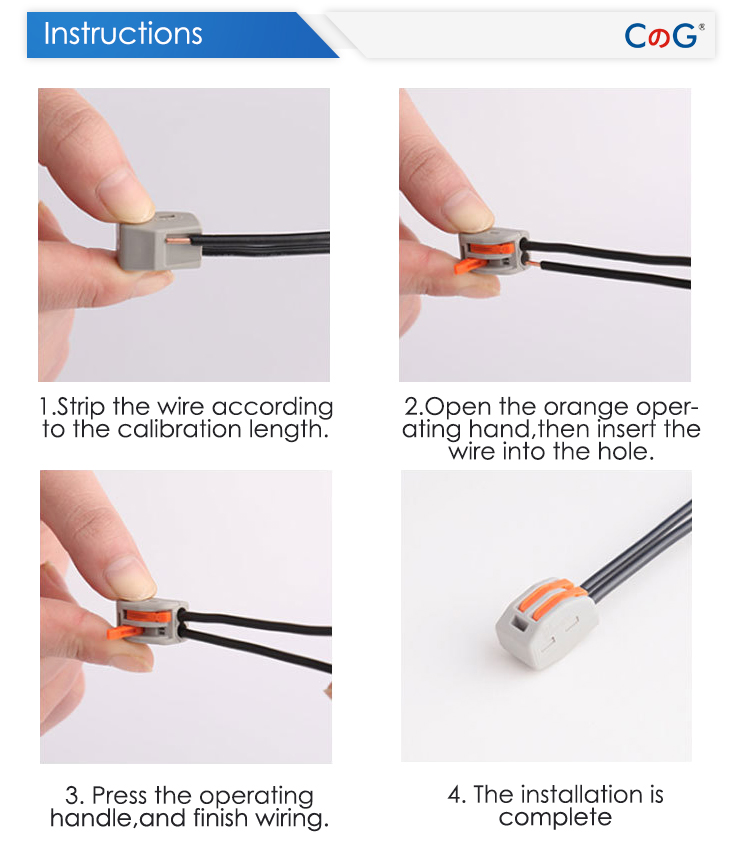

• Wiring Diagram
• Video

Description:

Product Name:Universal wire connector

Model Number:PCT-212

Material of Insulation:modified nylon(PA66) Contact material: Phosphor copper

Wire Cross section:0.08 - 2.5mm2(single hard wire);0.08 ~ 4mm2(multi soft wire)

Color:Grey+Orange Rated Current:32A Rated Voltage : 250V

Rated Impulse Voltage : 4KV Rated power 8KW Gauge 28~12AWG Strip length: 9 - 10mm

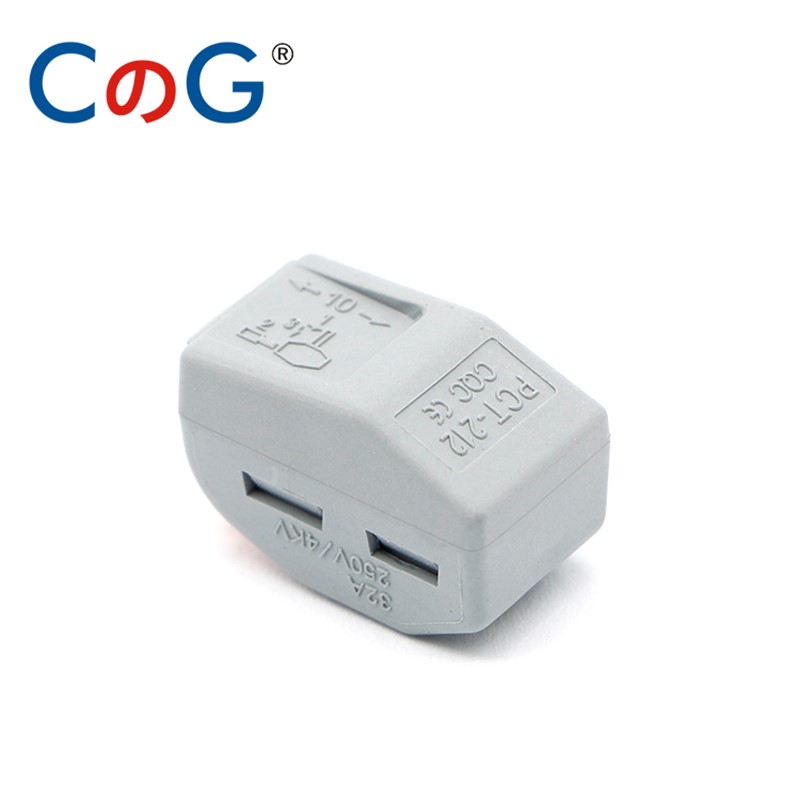

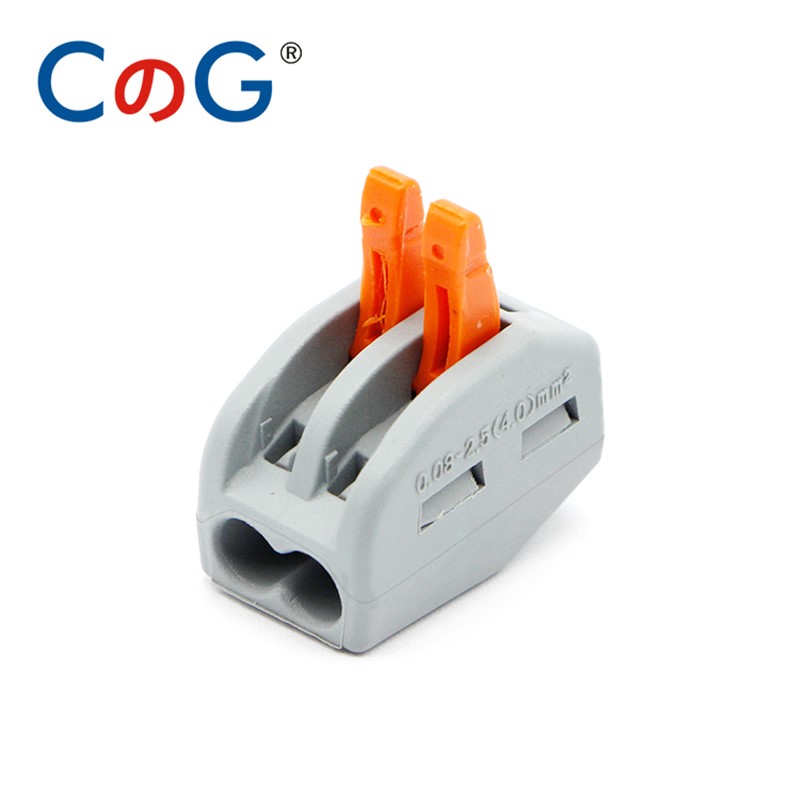

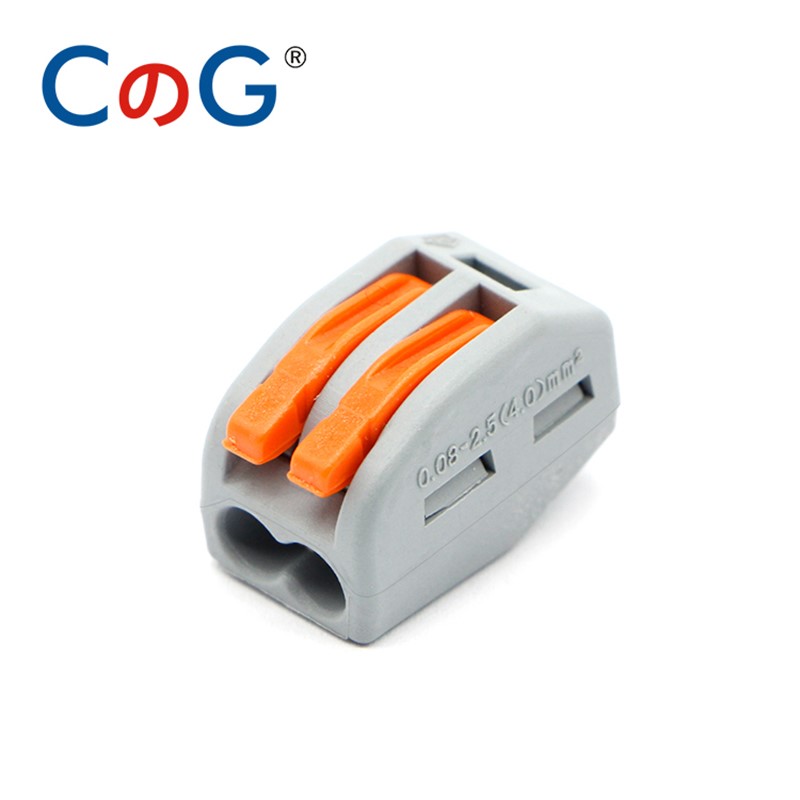

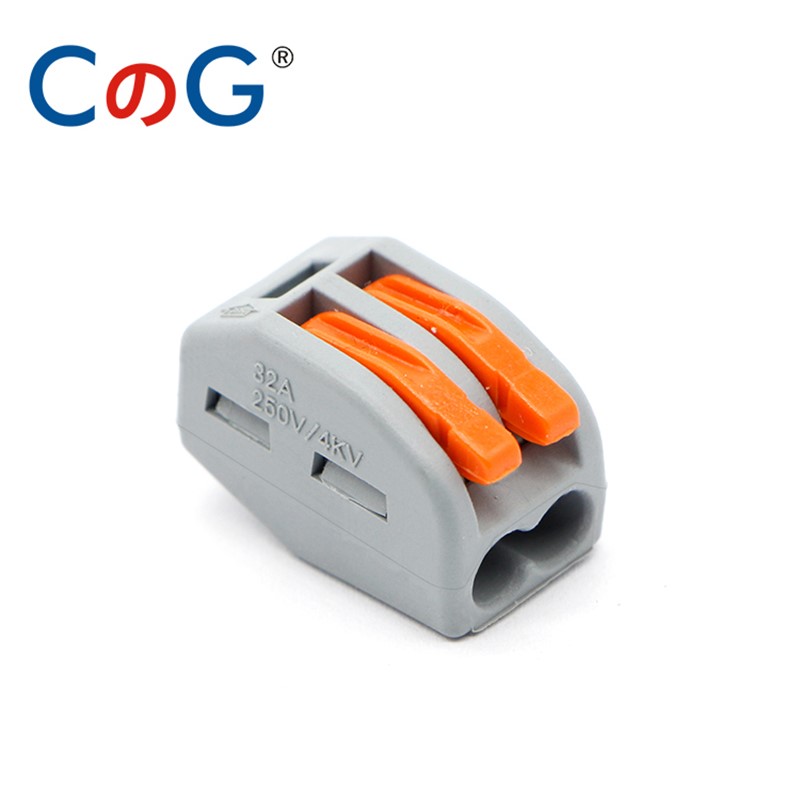

Product Display
