STEP 1: Choose a correct control Mode
AA- AC Control AC
DA- DC Control AC
DD- DC Control DC

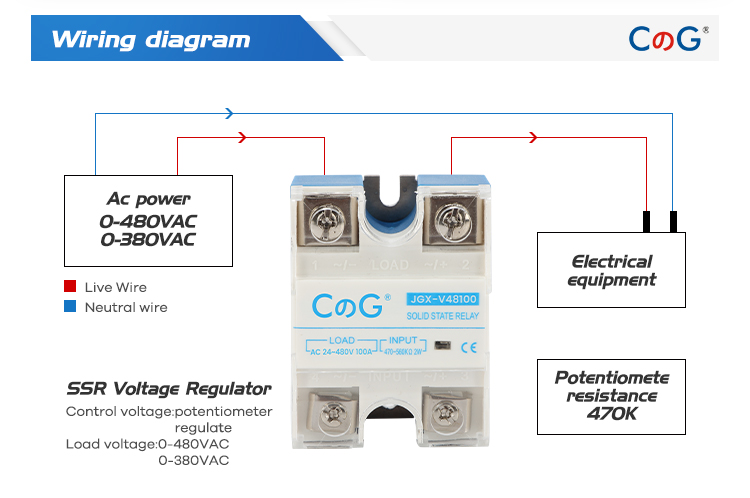

VA-Control and Adjust
STEP 2: Choose a correct type
Current of Equipment/Ratio = Current of SSR
PS: The Ratio depend on the kind of your loading equipment. Resistive load :70%, Inductive load:20%,Capacitive load：10%.

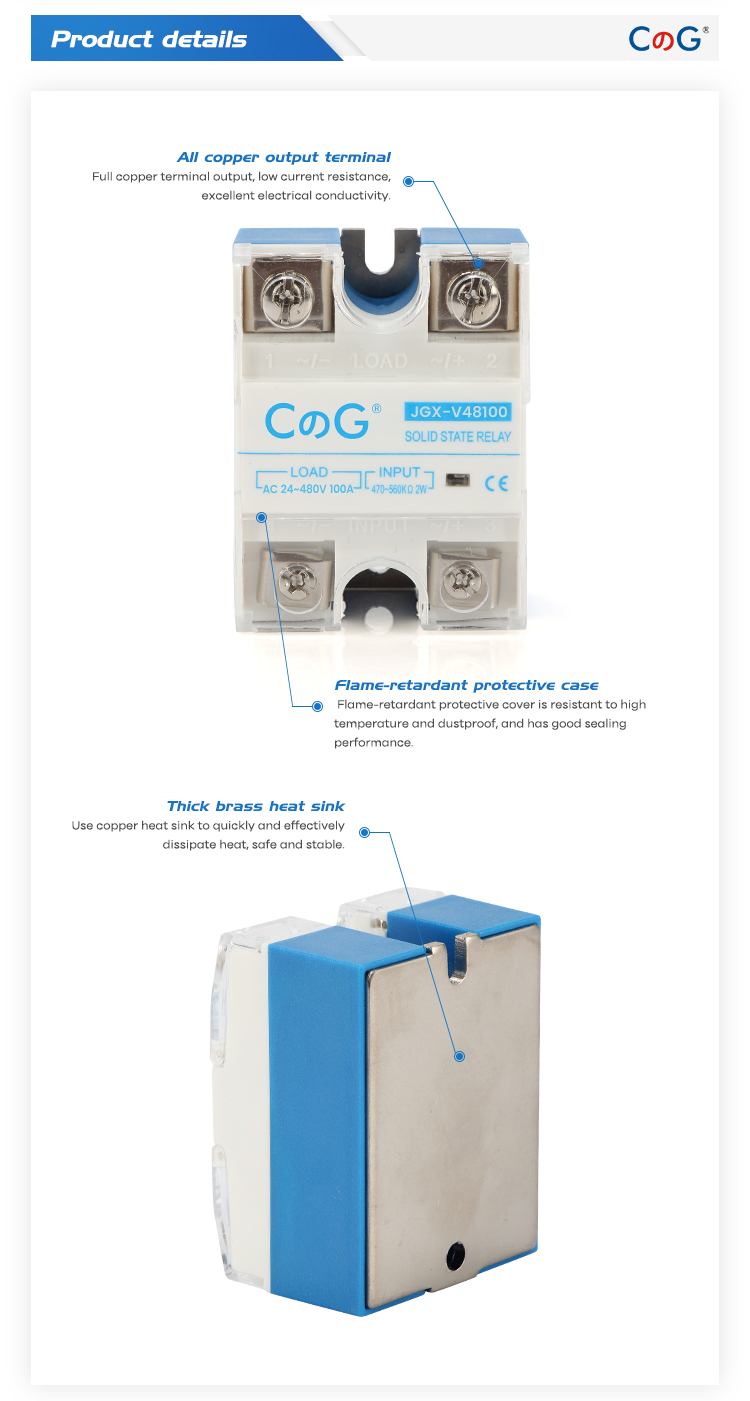

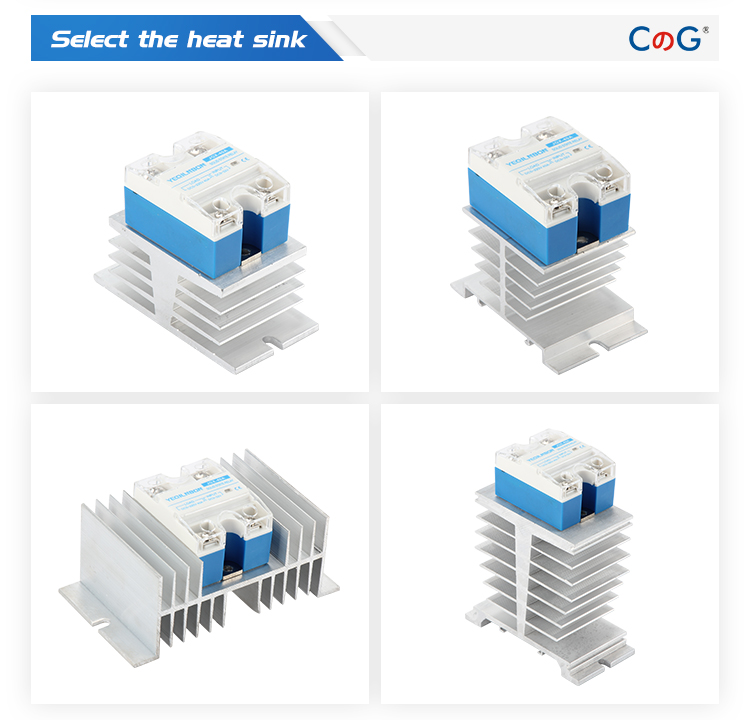

STEP 3: Choose a suitable heat sink.
During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A,the cooling fan also required.
PS: Our Heat Sink include 2 screws (for install heat sink) and a pack of thermal compound (is applied to the bottom of the SSR)
| Model | SSR-60VA 80VA 100VA |
| Control Signal | 470kΩ~560kΩ/2W |
| Voltage range percent | 7%~95% |
| Voltage range | 10-220VAC/10-380VAC |
| peak voltage | 600VAC |
| insulation resistance | NA |
| Load Current | 40A |
| Load Voltage | 24~380VDC(Basic model) |
| Off Leakage Current | <=2mA |
| On Voltage | <=5.6V |
| Relative Humidity | ≤95%(non-condensing) |

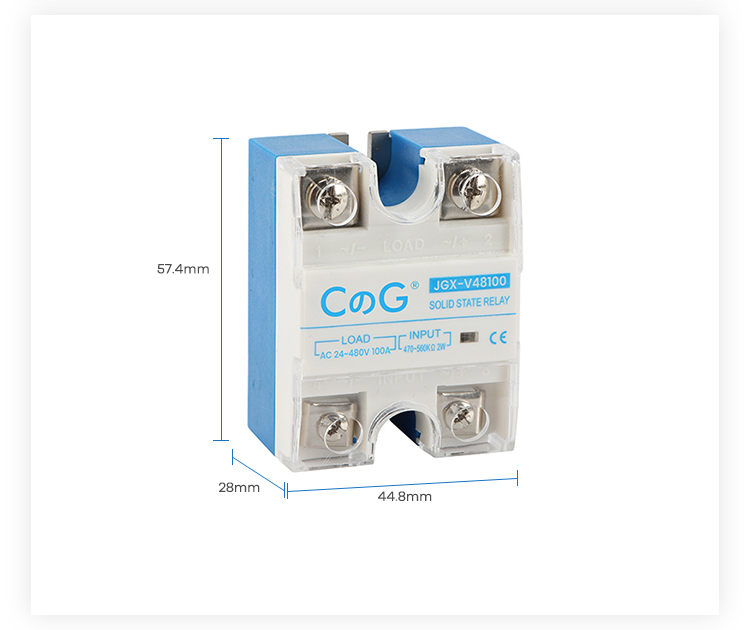

| Dimensions | 57.4x44.8x32mm |
| Mounting method | Screws on |
| Weight | ≤135g |
Send InquiryIf you have any enquiry about quotation or cooperation,please feel free to email us at Cecilia@cnchog.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
