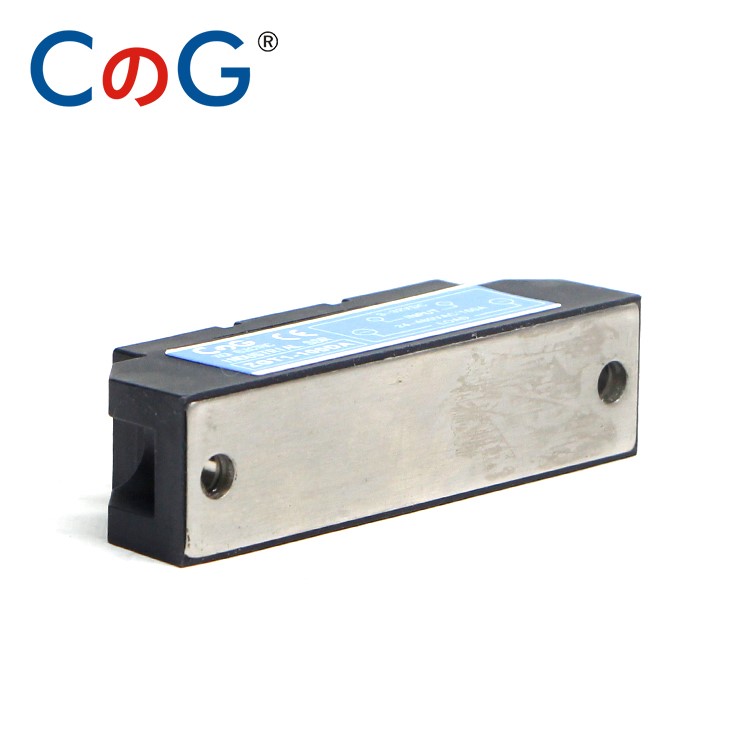

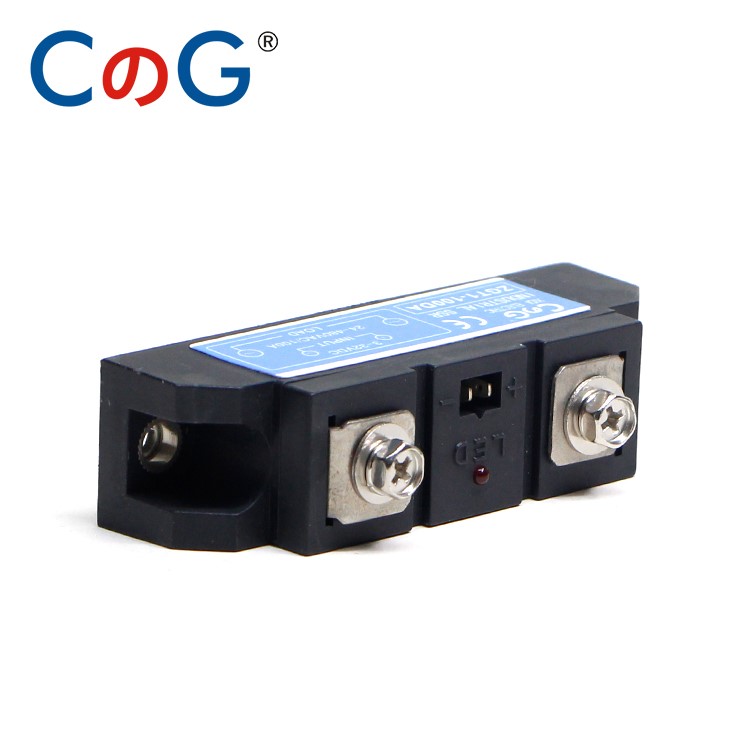

Industrial SSR-60DA 80DA 100DA

CG 60A 80A 100A Industrial High Power Auto industrial Series DC to AC Solid State Relay Solid State Relay
E-mail Us  PDF Download
【Prev Products】 【Next Products】


STEP 1: Choose a correct control Mode

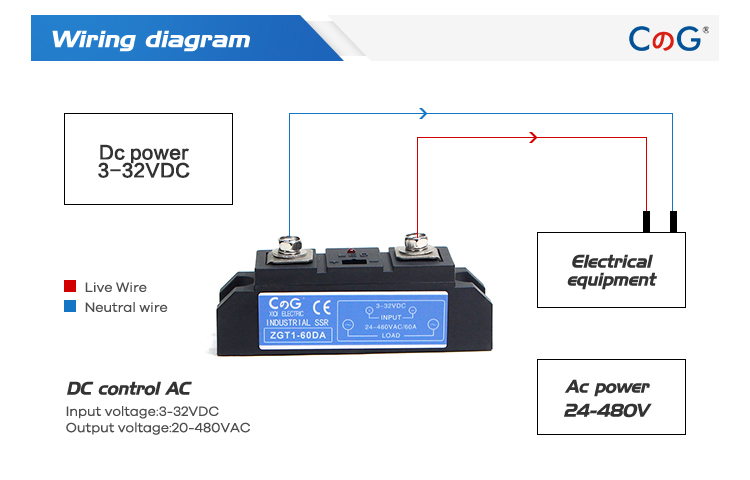

AA- AC Control AC DA- DC Control AC DD- DC Control DC VA-Control and Adjust


STEP 2: Choose a correct type

Current of Equipment/Ratio = Current of SSR PS: The Ratio depend on the kind of your loading equipment. Resistive load :70%, Inductive load:20%,Capacitive load:10%.

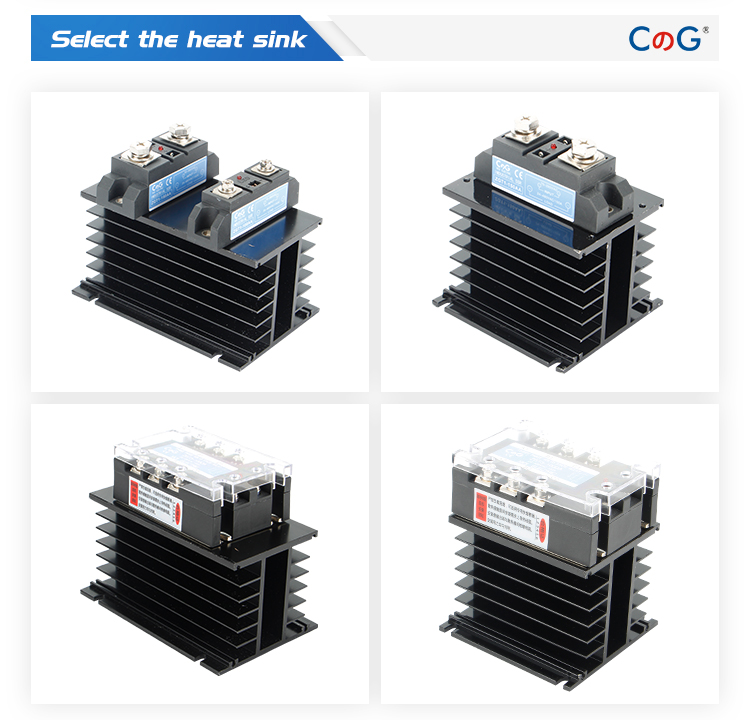

STEP 3: Choose a suitable heat sink.

During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A,the cooling fan also required. PS: Our Heat Sink include 2 screws (for install heat sink) and a pack of thermal compound (is applied to the bottom of the SSR)

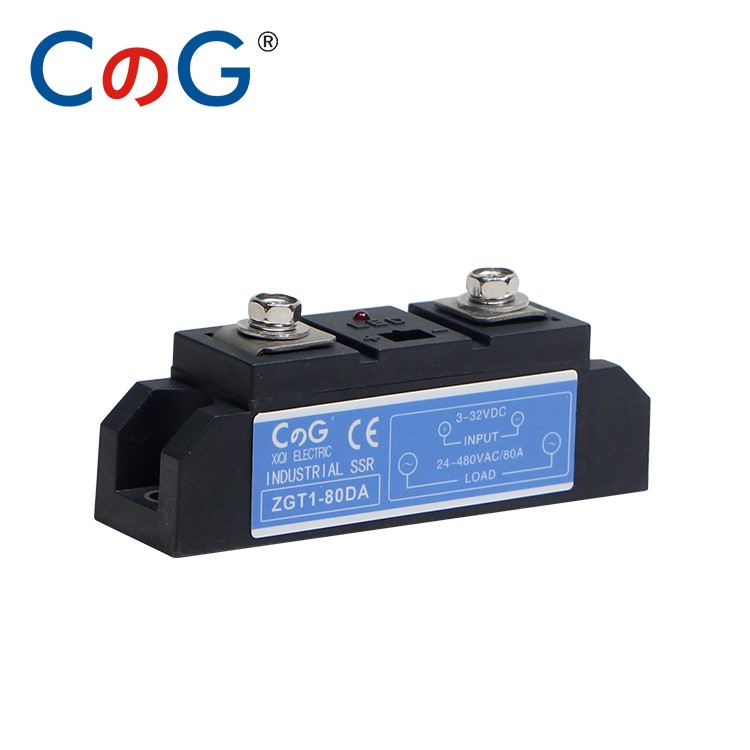

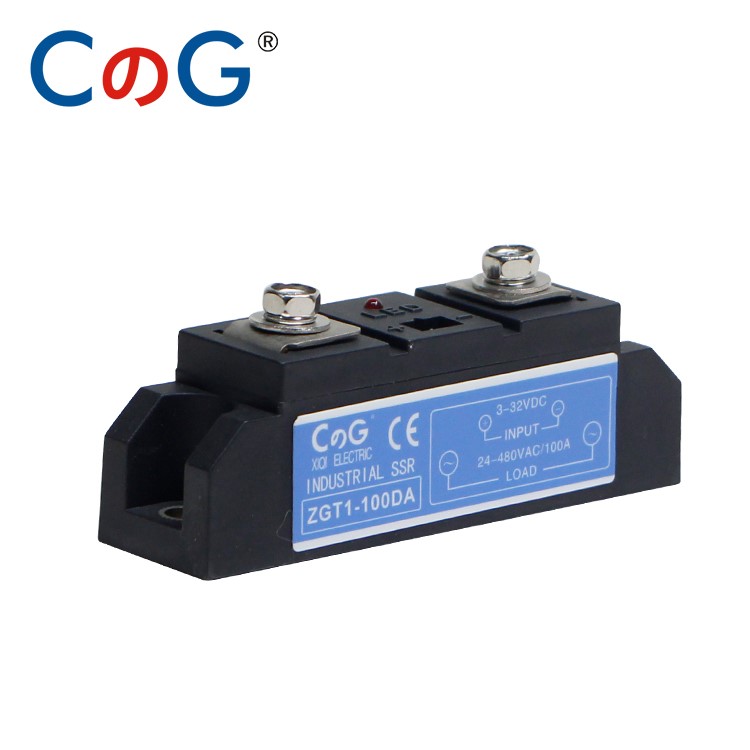

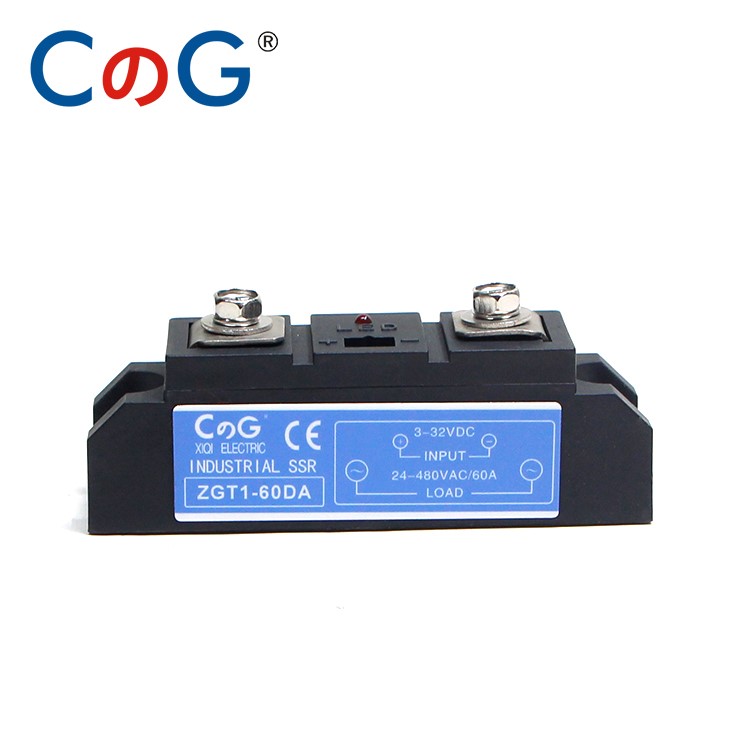

Model ZGT1-60DA/80DA/100DA
Control Voltage 3~32VDC
Min Control Current 5mA
Max Control Current 15mA
Load Voltage 24-480VAC
Load Current 60A/80A/100A
Insulation Resistance 1000M Ohm/ 500VDC
Off Leakage Current <=20mA
On Voltage <=1.5V
On-off Time <=10ms
Ambient Temperature -20~+75 ℃
Mounting Method Screw fixed
Relative Humidity ≤95%(Non-condensing)

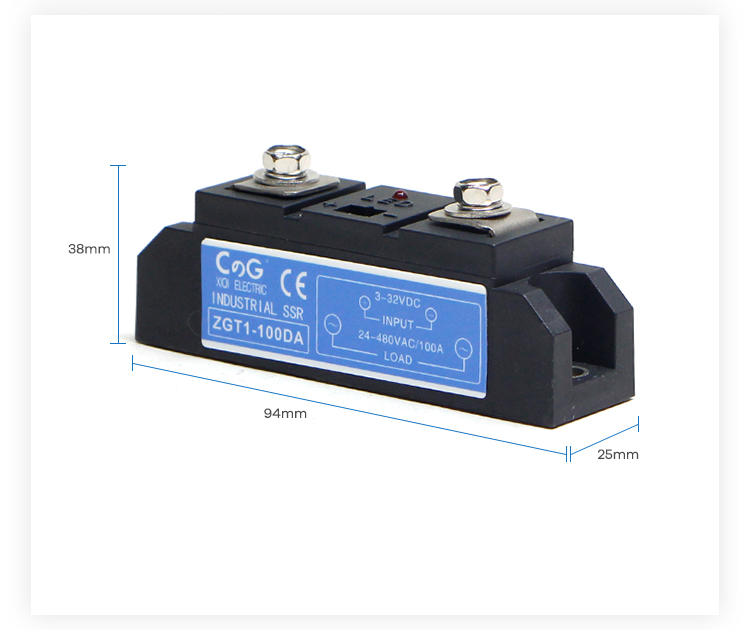

Dimensions 94x25x38mm
Mounting method Screws on
Weight ≤170g
