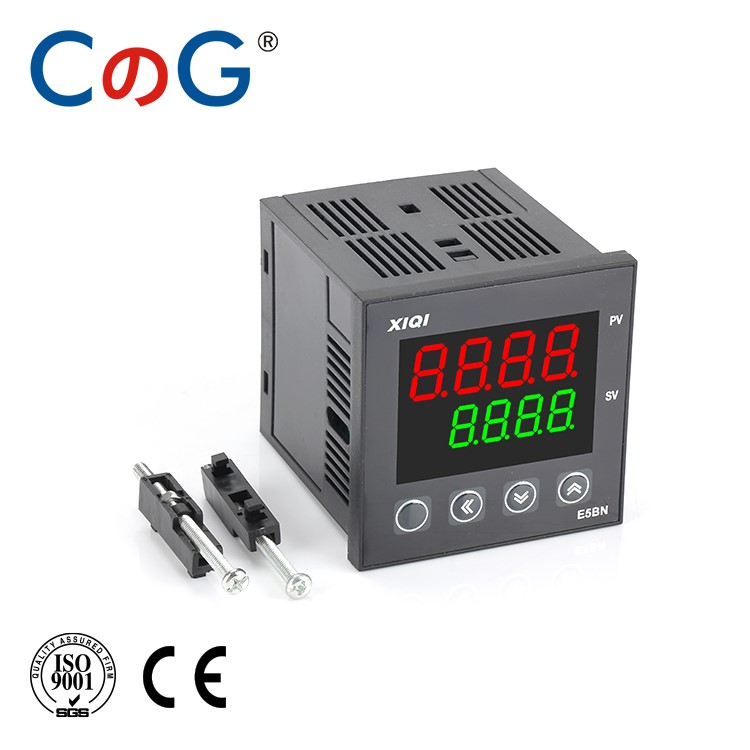

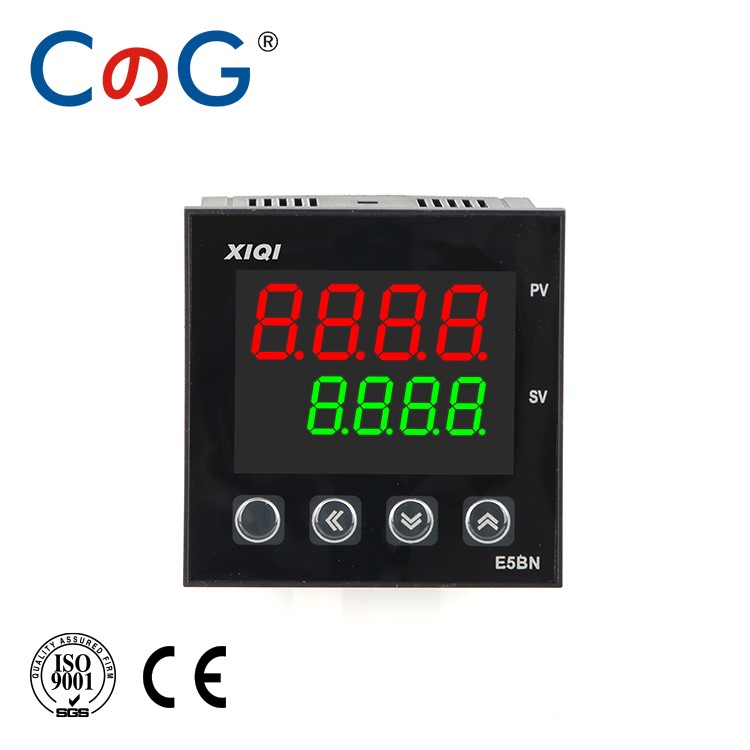

E5BN-R2MT

• Parameters
• Features
• Dimension Figure
• Package

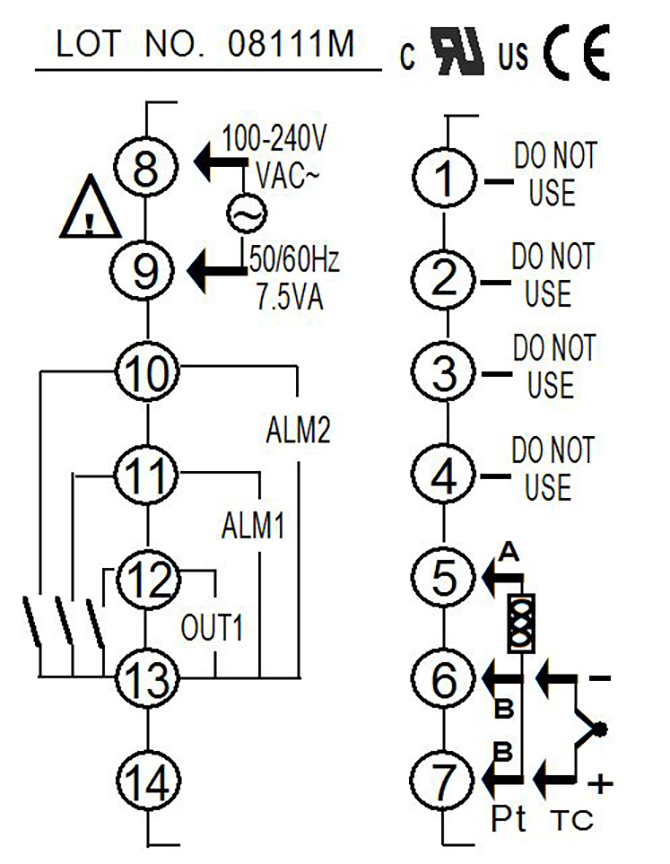

• Wiring Diagram
• Video

Type	E5BN
Power Supply	AC 110V-220V / 24VDC
Input	Multi input: K (0~+ 1300℃), E(0~800 ℃), J(0~800℃), PT100(-200~+600 ℃) Single input: 4-20mA OR 1-5V
Output	Relay/ SSR/ 4-20mA (Linear and PID) / 0-10V(Linear and PID)
Accuracy of Measurement	±0.5%

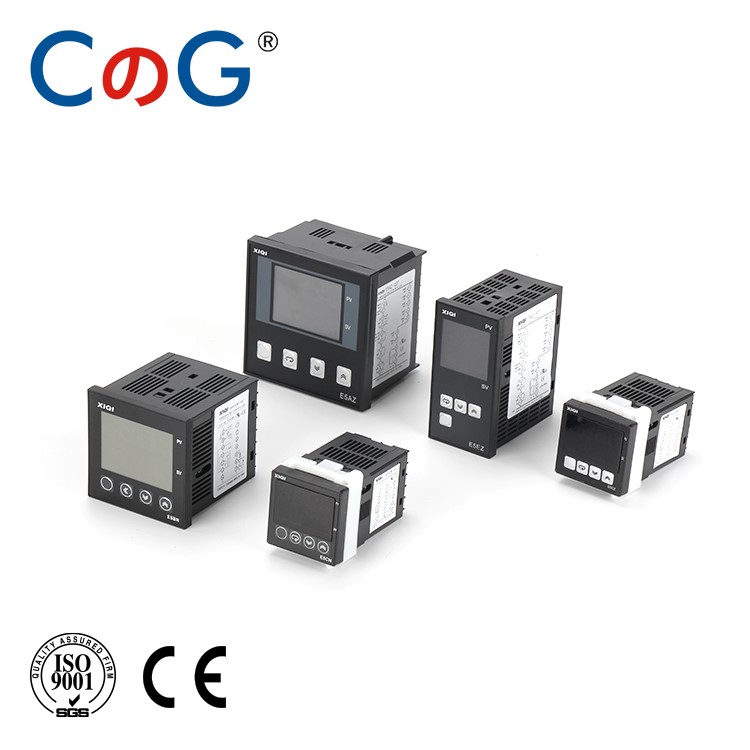

Outline Dimension	48*48mm/ 48*96mm/ 72*72mm/ 96*96mm
Alarms	Two Alarms
With RS485	Yes
Operating temperature	0-50℃
Compensating error of cold side	±2℃(the software corrects the data for 0-50℃ fluctuations in temperature )
Control Mode	Adopt industrial and PID Parameters of Control System,Temperature Control, responsible faster,Start modulation smaller, accuracy higher than troditionalPID
