Input and Output
Multiple Input =(K,J,S,E,PT100)
The controller has 1 Alarm and 2 Alarms output.
Except Alarm, we have another output.

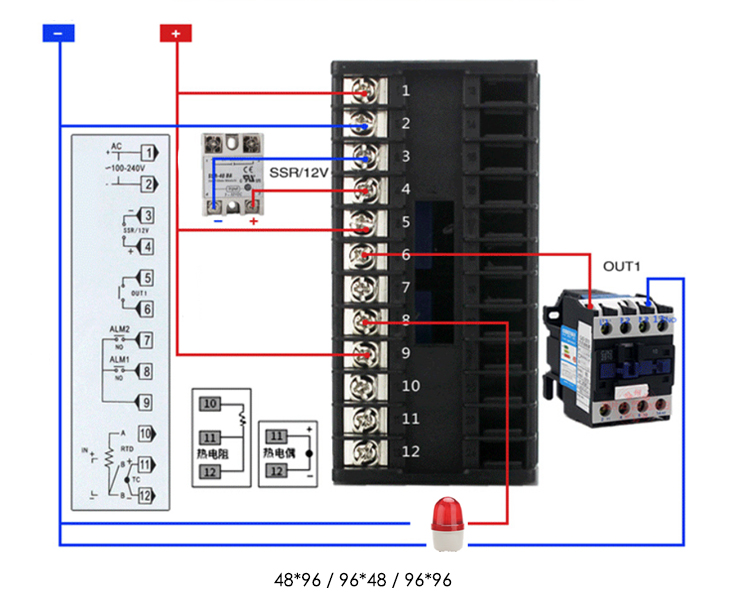

Double Output = Output ( RELAY And SSR)
0-10V PID output and 4-20mA Output are PID control.
For example:

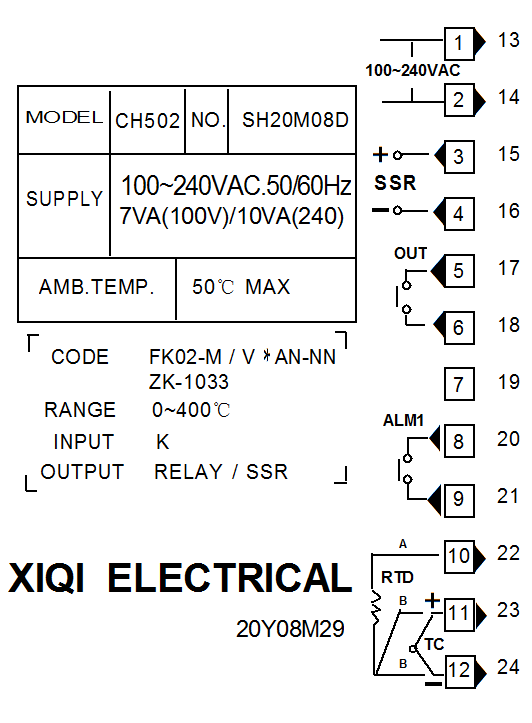

OUTPUT
1 Alarm and double Output = 1 Alarm + double output( RELAY And SSR)
2 Alarms and double Output = 2 Alarms + double output( RELAY And SSR)
1 Alarm and 4-20mA PID = 1 Alarm + 4-20mA PID output
INPUT
380V Multiple Input= 380V power supply + Multiple Input (K,J,S,E,PT100)
110-220V Multiple IP =110-220V power supply + Multiple Input (K,J,S,E,PT100)
110-220V 4-20mA Input=110-220V power supply + 4-20mA Input

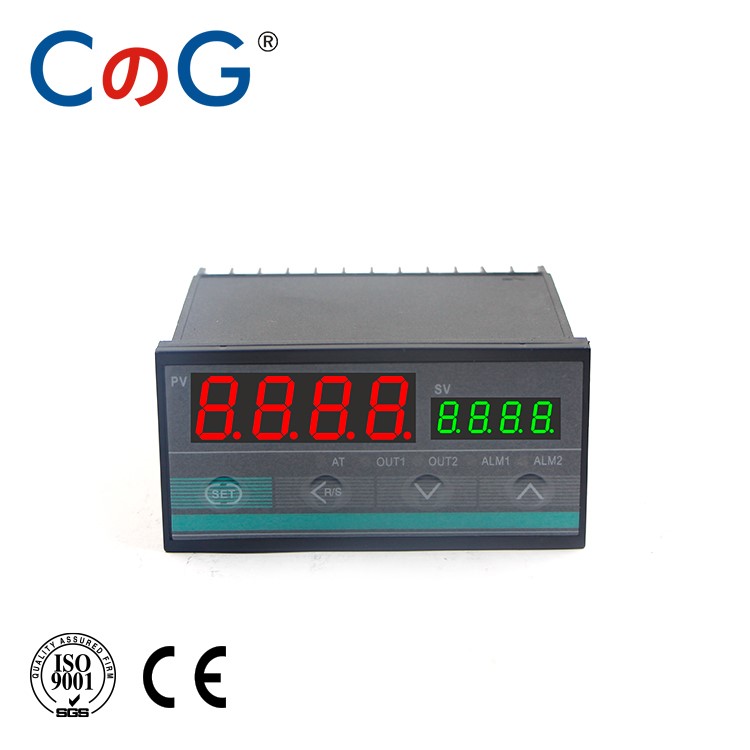

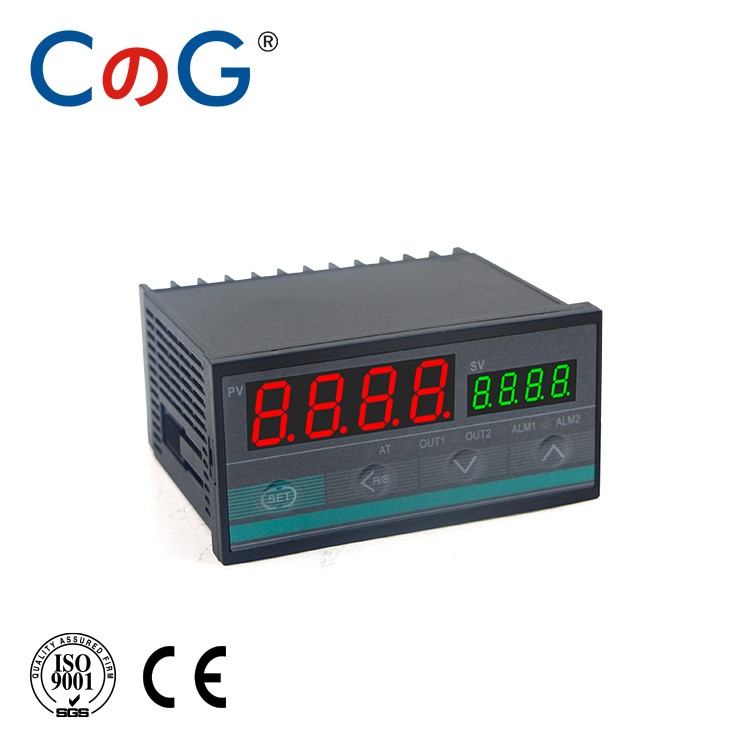

| Type | CH502 |
| Power Supply | AC220V / 24VDC / 380VAC |
| Input |
Multi-input - K(-50~+ 1300℃),E(0~800℃), Cu50(-50~+150℃),PT100(-200~+600) |
| Output | Double output(relay and SSR) / 4~20mA / 0-10V |
| Accuracy of Measurement | ±0.5% |

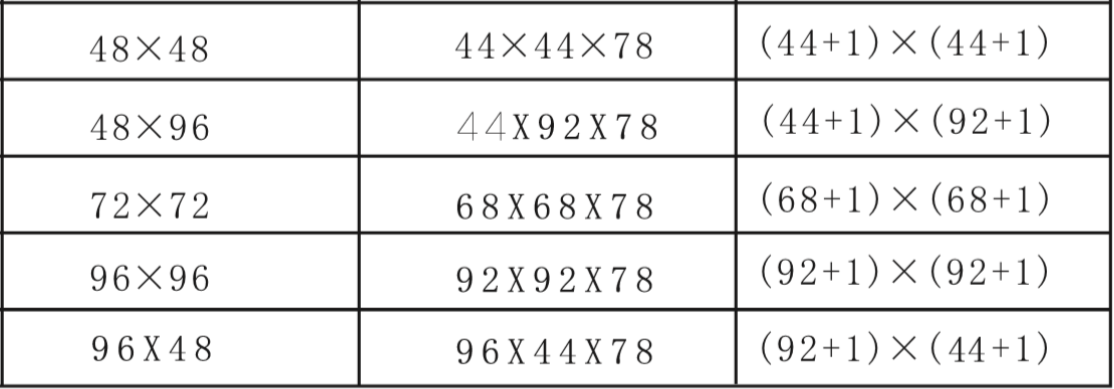

| Outline Dimension | 96*48mm |
| Install Dimension | 92*45mm |
| Operating temperature | 0-50℃ |
| Compensating error of cold side | ±2℃(the software corrects the data for 0-50℃ fluctuations in temperature ) |
| Control Mode |
Adopt industrial and PID Parameters of Control System,Temperature Control, responsible faster,Start modulation smaller, accuracy higher than troditionalPID |
