CD401

You are here: Home » What We Do

CD401

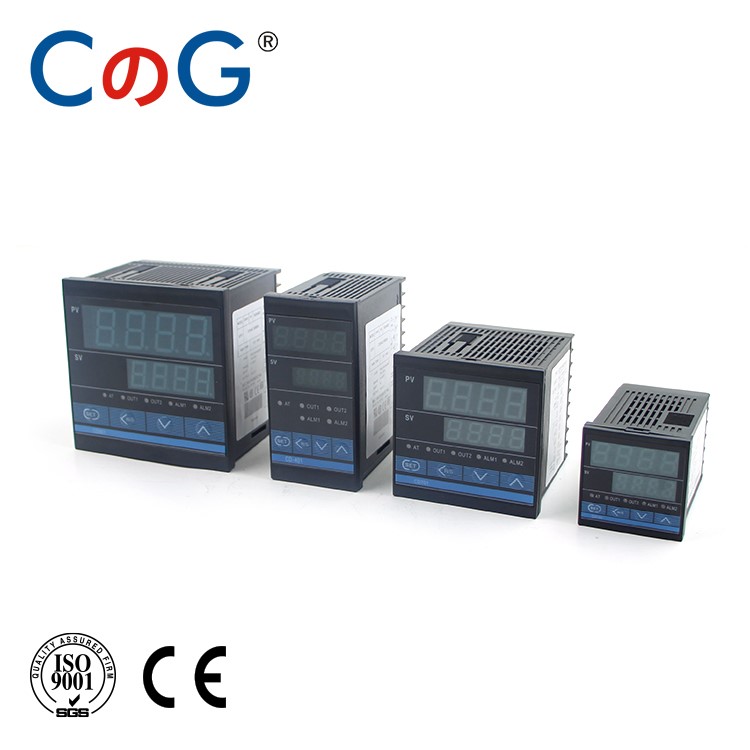

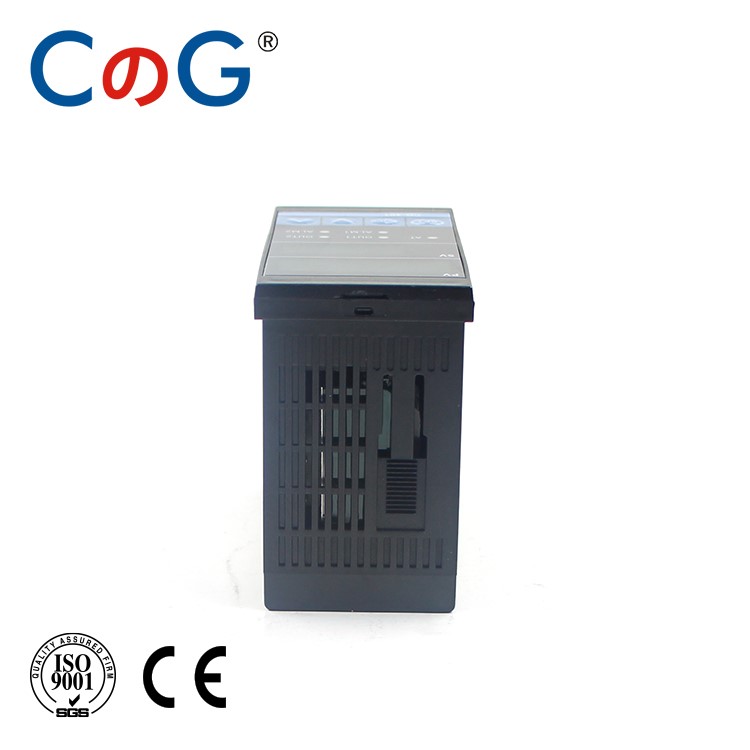

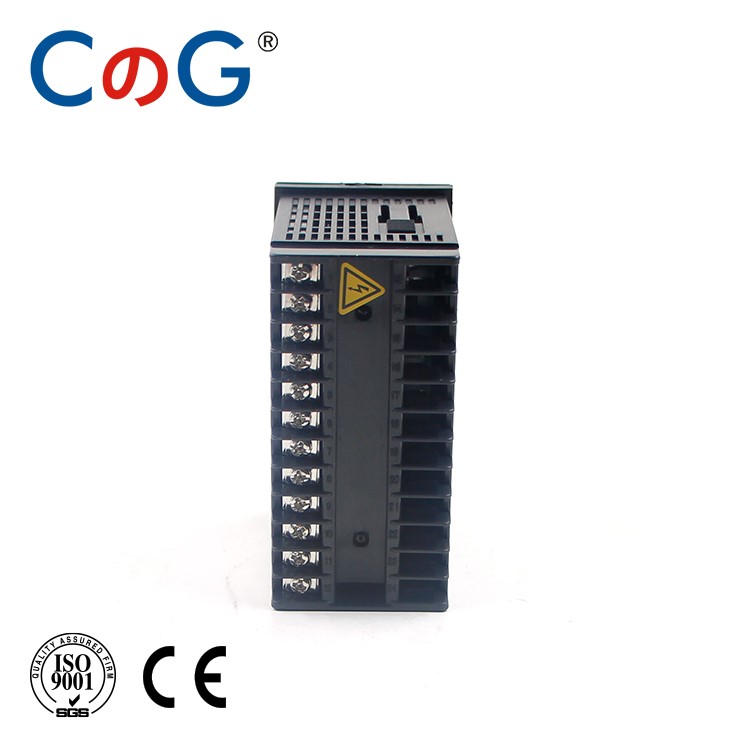

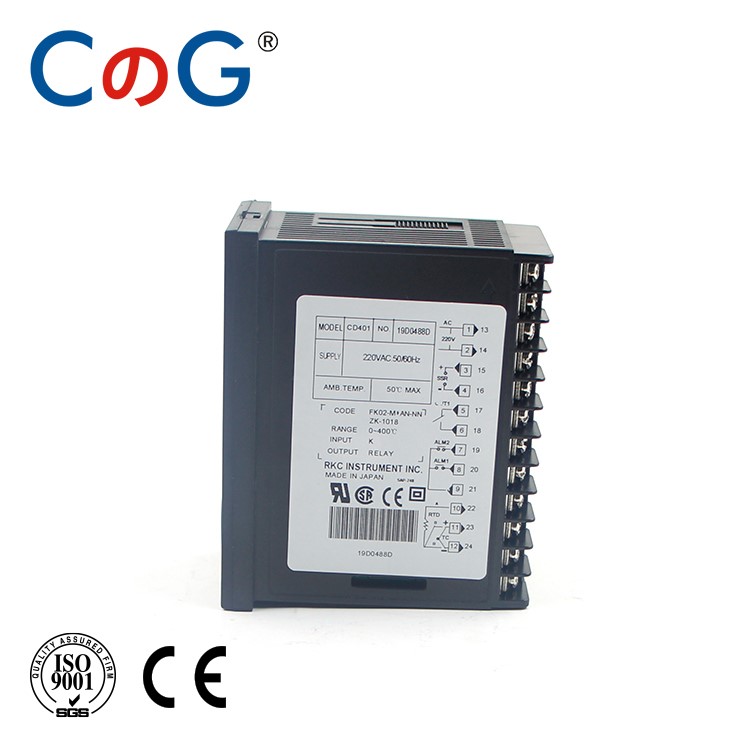

CG CD401 China Dual Panel Constant Temperature Thermostat Controller
E-mail Us  PDF Download
【Prev Products】 【Next Products】


Describtion


1.All of the controller series is multy input ,we can select K/E/PT100/0-5V from menu.

2. Controller is 1alarm relay control default ,if you want 2alarm, you can place the 2alarm option, add 1usd more.

3.Controller is 110V~240VAC power supply , if need 24V or 380V power supply, you can place the 24VDC option add 0.5usd more to customized.

4.Controller is relay and SSR main double output with one more alarm, if you want the main output change to PID 4-20mA or 0-10V, you can place the option add 5usd more to customized.


Type CD402
Power Supply AC220V / 24VDC / 380VAC
Input

Multi-input -K(-50~+ 1300℃),E(0~800℃),

Cu50(-50~+150℃),PT100(-200~+600)

Output Double output(relay and SSR) / 4~20mA / 0-10V
Accuracy of Measurement ±0.5%
Outline Dimension 48*96mm
Install Dimension 45*92mm
Operating temperature 0-50℃
Compensating error of cold side ±2℃(the software corrects the data for 0-50℃ fluctuations in temperature )
Control Mode

Adopt industrial and PID Parameters of

Control System,Temperature Control,

responsible faster,Start modulation smaller,

accuracy higher than troditionalPID
