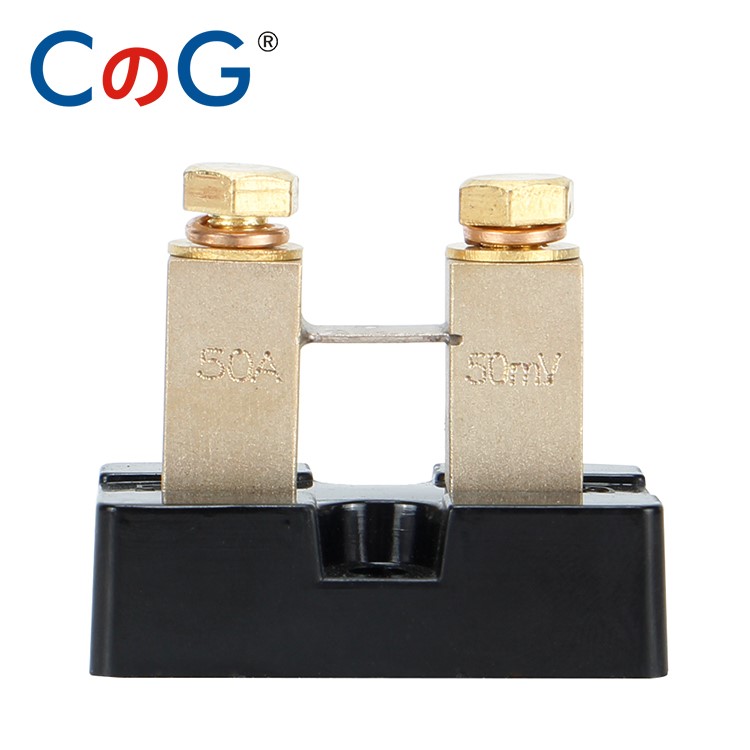

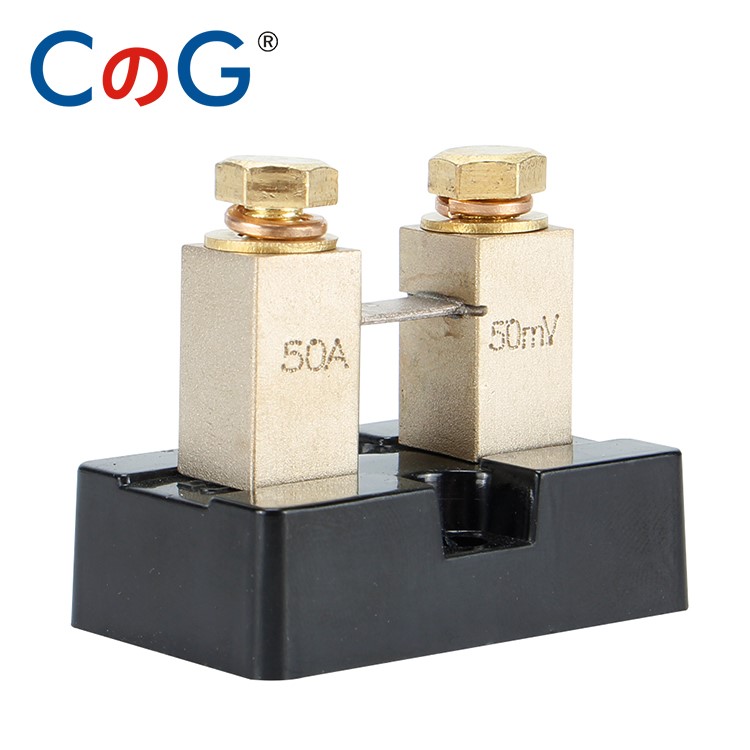

50A 50MV

• Parameters

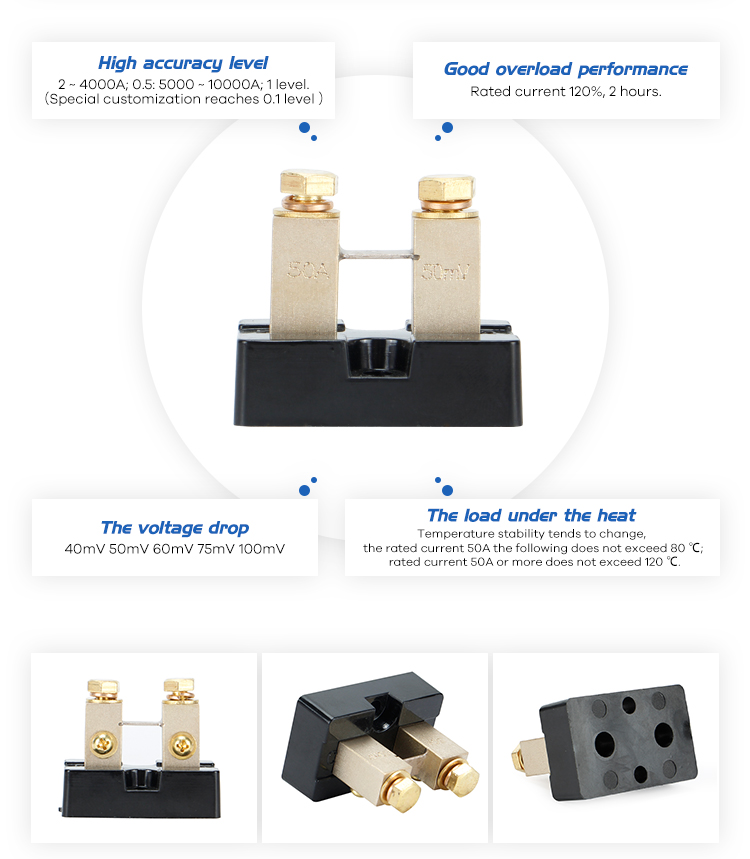

• Features

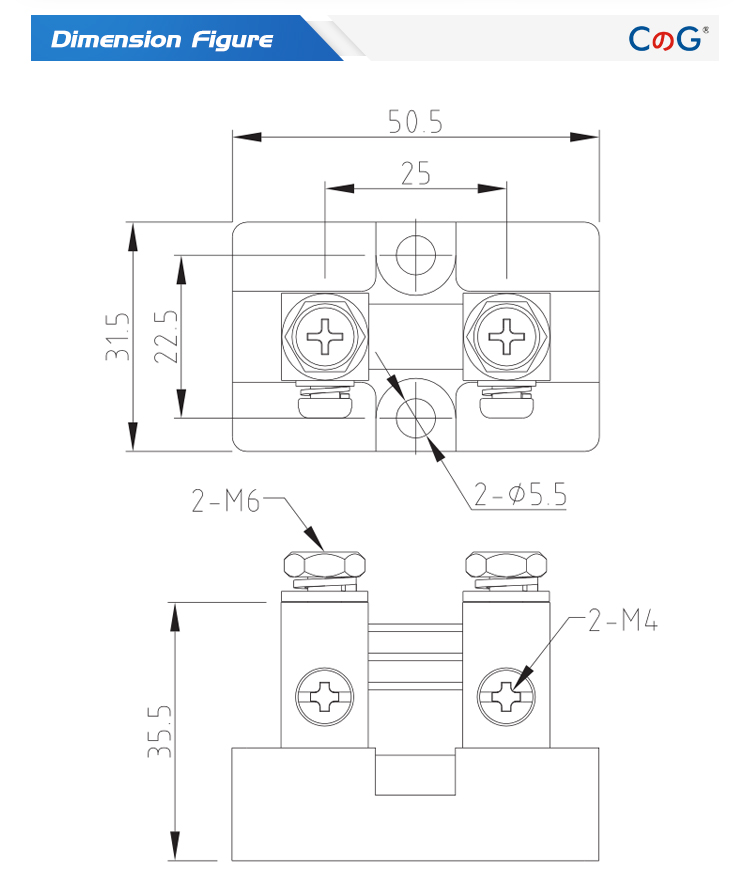

• Dimension Figure
• Package
• Wiring Diagram
• Video

There are too many models of the shunt,

please consult If you want other voltage or customized size.

Color	Black And Yellow
Current Rating	50A (can be costomized)
Operating Temperature	-40°C ~+60°C
Voltage Drop	50mV/60mV/75mV/100mV (can be costomized)
Accuracy Class	0.25 %
Material	Brass+Manganin
Overload Capacity	120% Of Rated Current For 2H
Function	Are Used To Multiply The Measuring Range Of Current Of Measuring Instruments.
Application	Use For DC Digital Amp Meter
