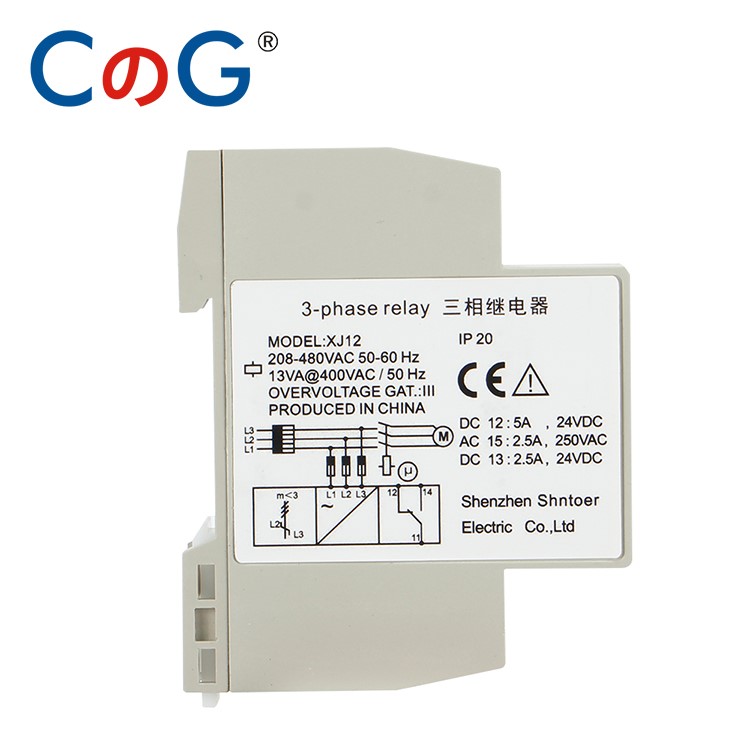

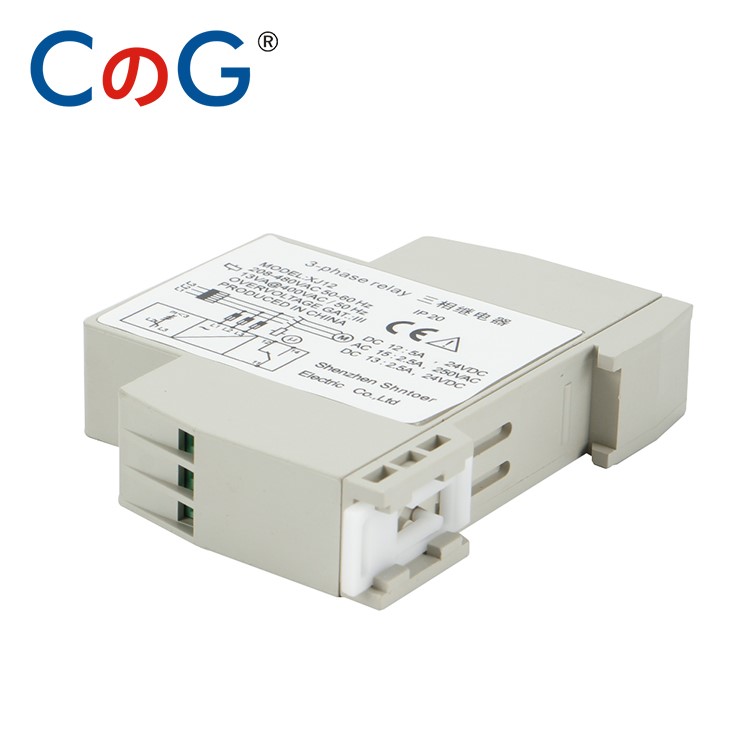

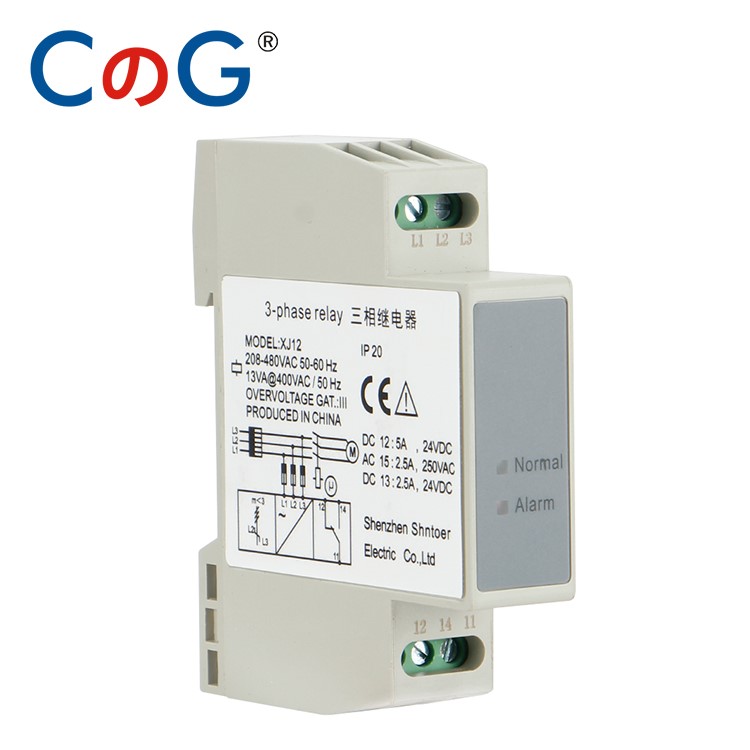

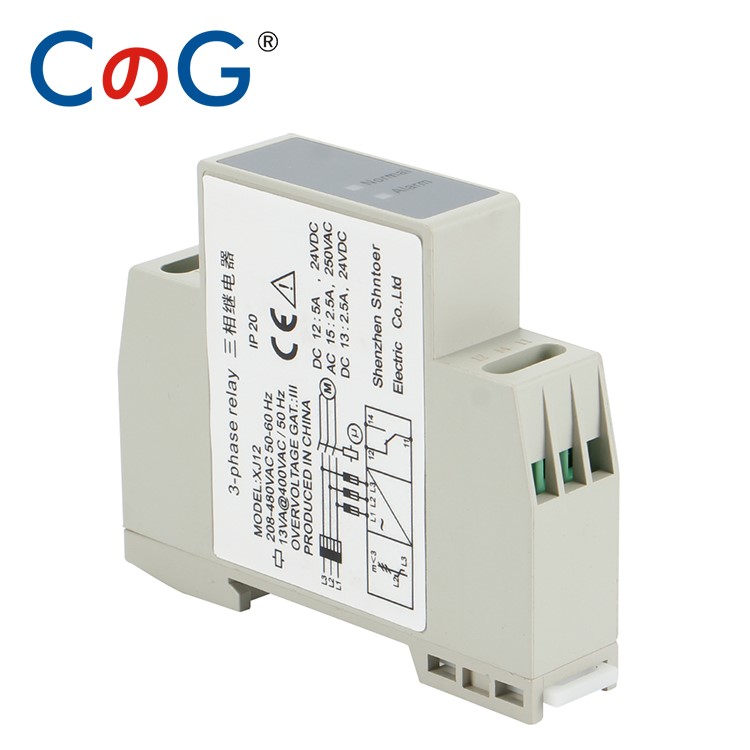

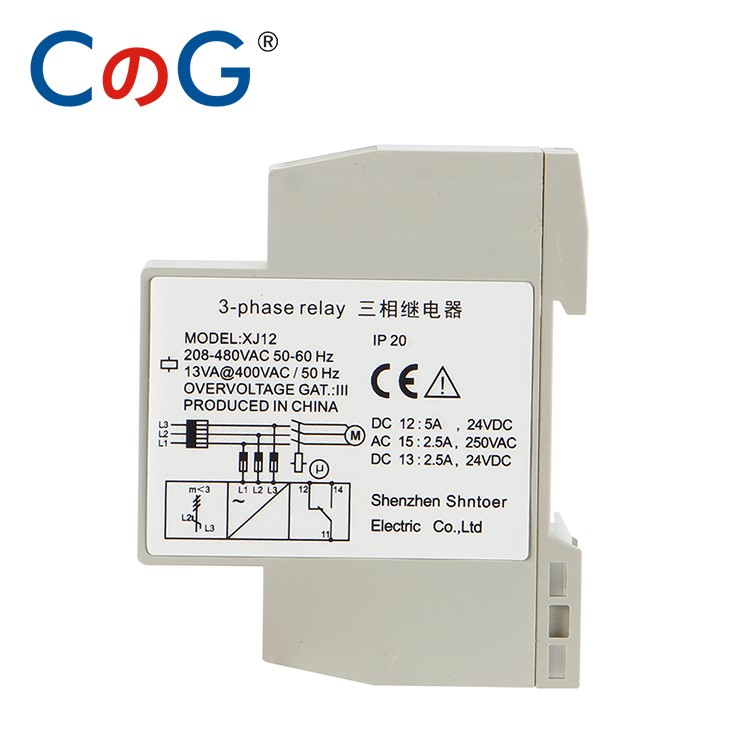

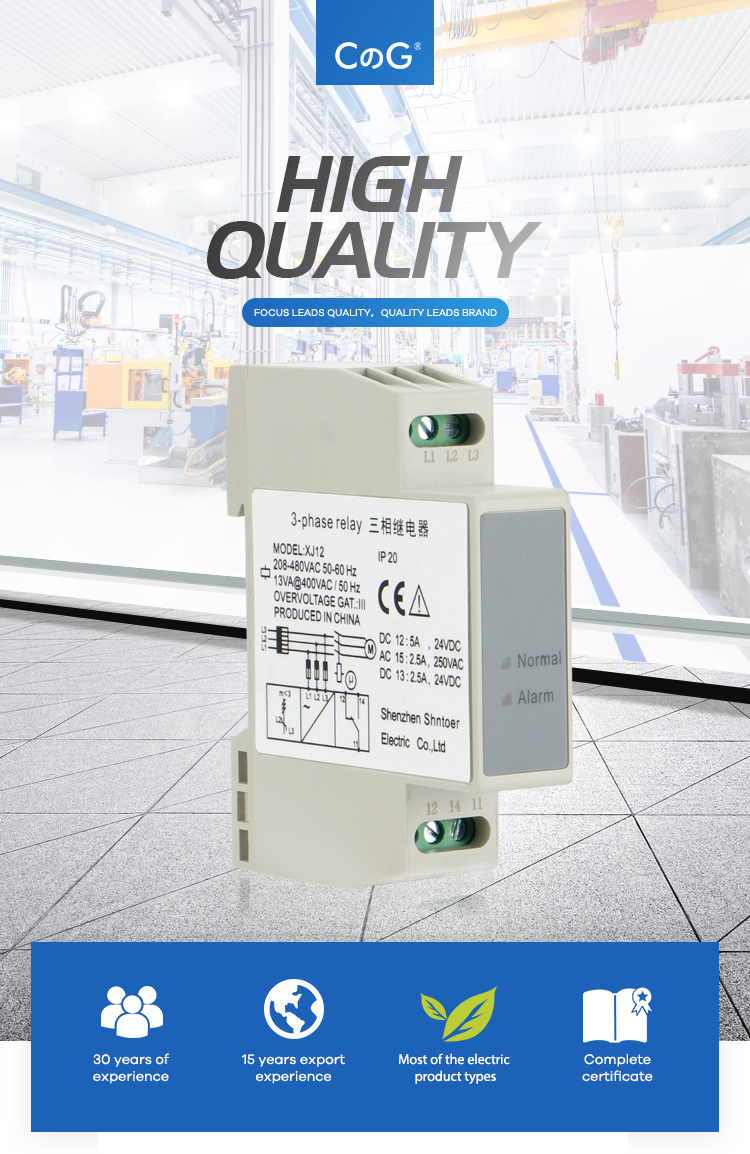

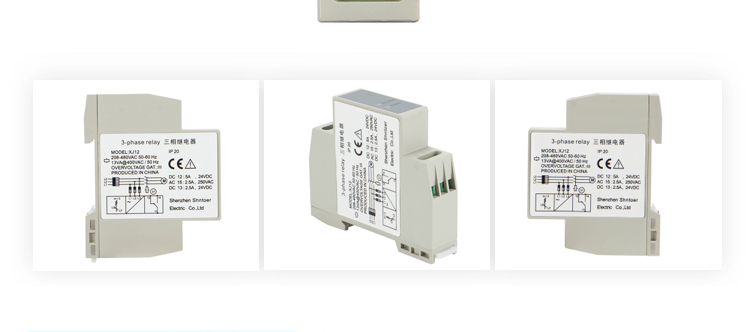

3-Phase Monitor Relay

Product features

-This 3-Phase Monitoring Relay has a small compact size for easy and convenient use and install, and the size of the Monitoring Relay is 8.1 x 6.7 x 1.75 cm/3.1 x 2.6 x 0.6 inch, you can install it on any places around the room, saving a lot of place

-This 3-Phase Monitoring Relay has a widely use on the electric filed, and it can be applied to motor protection, elevator, air conditioning system, power system and other industries, very helpful tool during daily life

-3-Phase Monitoring Relay features with strong anti-interference performance, so it helps maintain a constant and efficient work of the motor, it will provide an excellent performance during the working process <3-Phase Design>

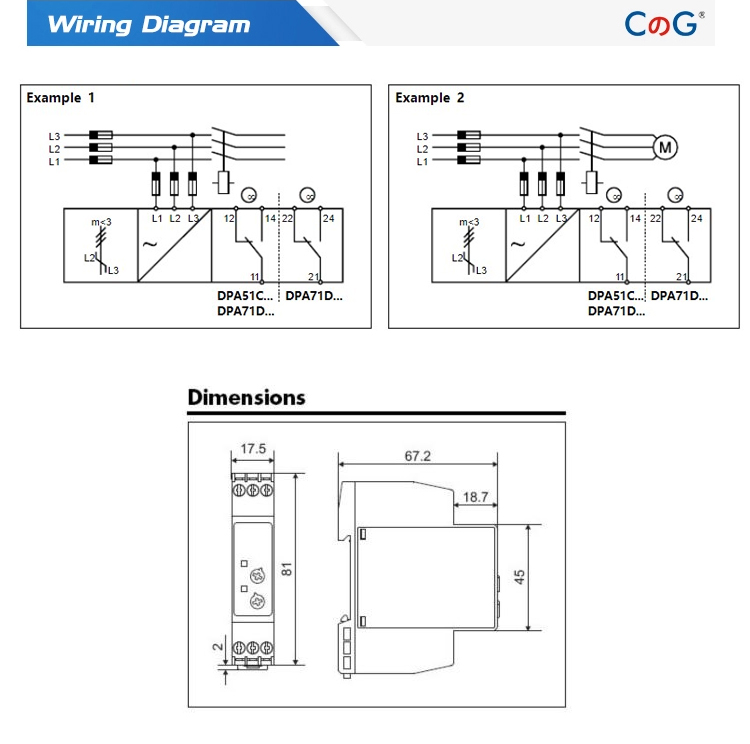

-This Current Monitoring Relay is designed with 3-Phase Monitoring Relay to provide a correct phase sequence, without neutral, phase Loss and Incorrect phase sequence, so it can detect when all phases are present and have the correct sequence

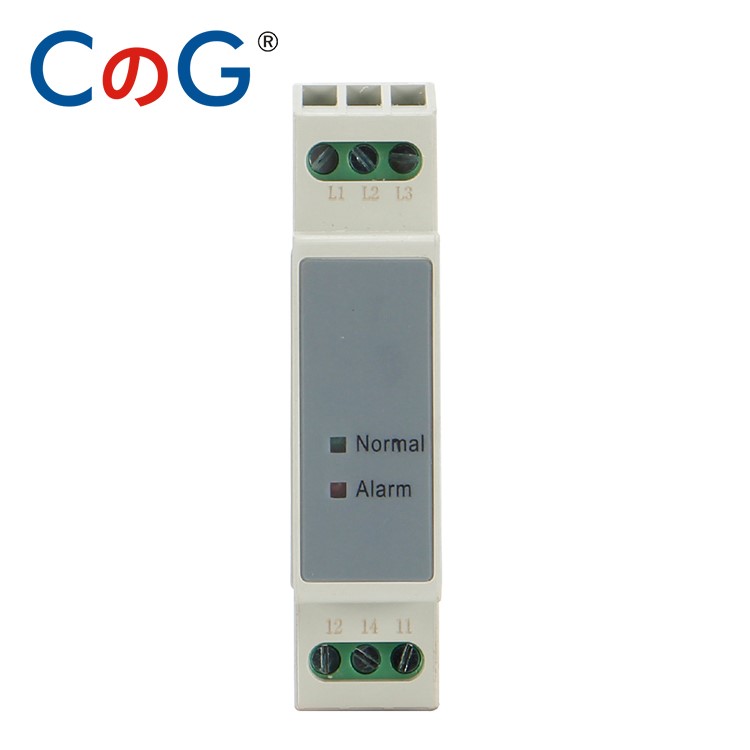

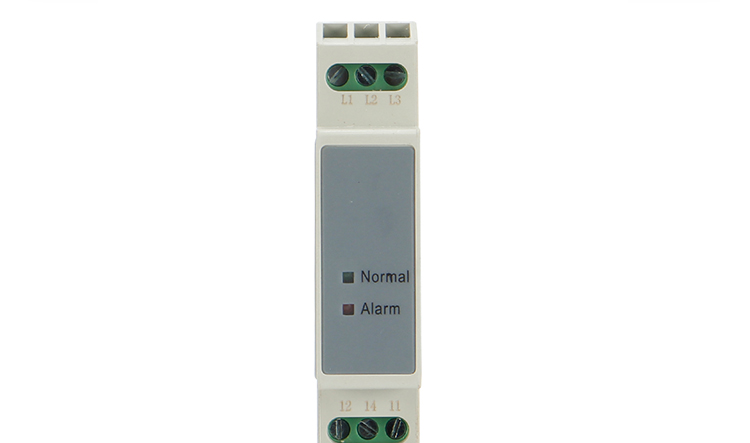

-This Monitoring Relay features an LED indication for easier installation and trouble shooting, which permits a maximum degree of protection to be achieved for machines, plants and systems, and avoid far more significant subsequent damage, very convenient and useful

Product description

3-Phase monitoring relay features strong anti-interference performance. Compact size and convenient for installation. Maintain constant and efficient work of the motor. Widely used in motor protection, elevator, air conditioning system, power system and other industries. 3-phase monitoring relay for phase sequence and phase loss.

Specifications

Model: DPA51CM44 Contact load: 5A/ 250VAC; 5 A / 24 VDC Rated current: 5A Rated voltage: 208-480VAC Protective features: IP20 3C rated voltage range: below 36V Measuring range: 208-480VAC Contact switching voltage: 250V Contact switching current: 5A Output: 1*SPDT relay Maximum load capacity: 5A/250VAC, 5 A / 24 VDC Electrical life: > 100,000 times Size: 8.1 x 6.7 x 1.75cm/3.1 x 2.6 x 0.6inch
