1P AC Circuit Breaker

About this item

· ✔【What You Get】The package includes 2×1 pole 120/240V AC circuit breaker, 1×35mm din rail,2×din rail sleeve,2×screw.

· ✔【High Quality】The shell is made of high quality flame-retardant material, which is sturdy and durable and does not fear sparks, and it adopts all-silver contacts with high conductive efficiency.

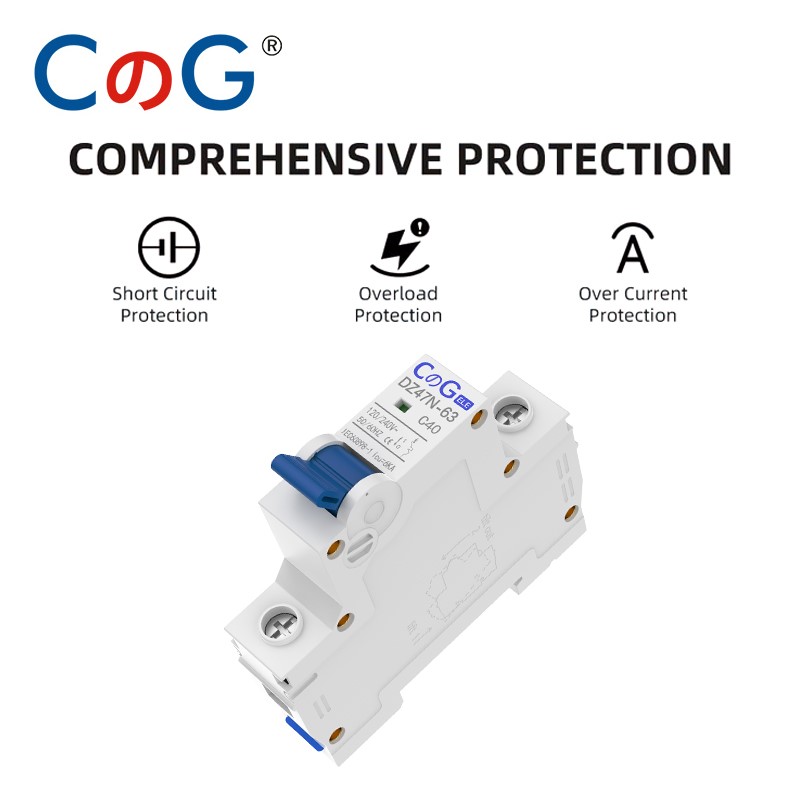

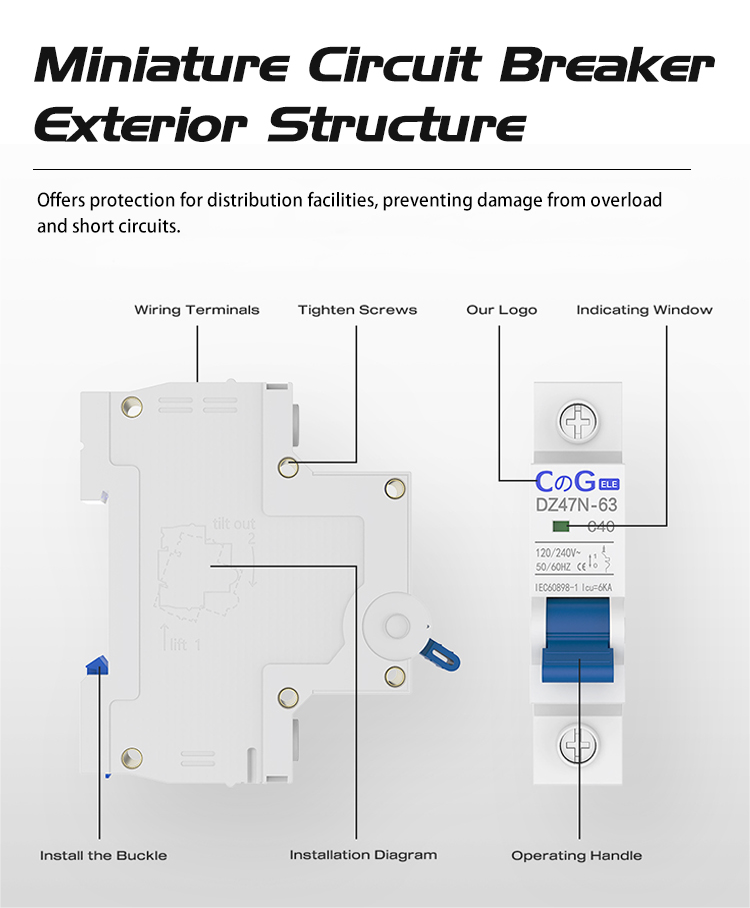

· ✔【Functionality】Offers protection for distribution facilities, preventing damage from overload and short circuits. Additionally, it serves as a means of control and isolation.

· ✔【Arc Extinguishing Function】This AC miniature circuit breaker incorporates a magnetic system to enhance the efficiency of arc extinguishing, ensuring improved safety and reliability.

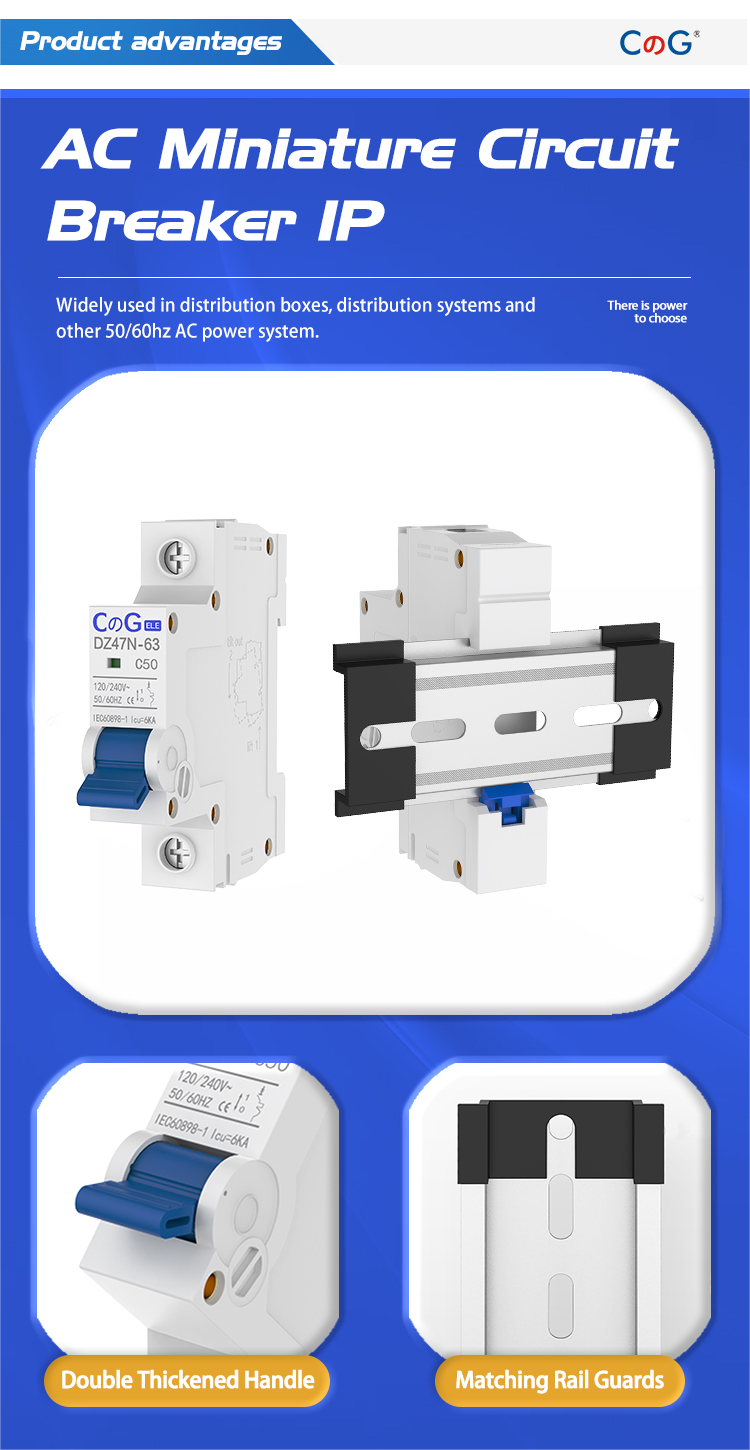

· ✔【Wide Range of Applications】Widely used in distribution boxes, distribution systems and other 50/60hz AC power system.

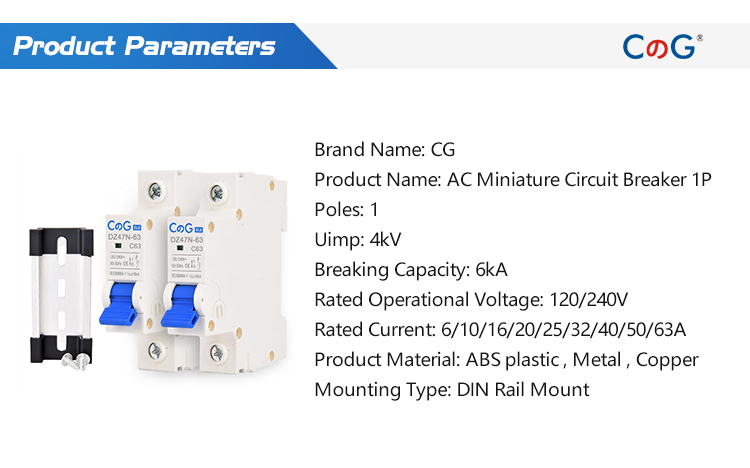

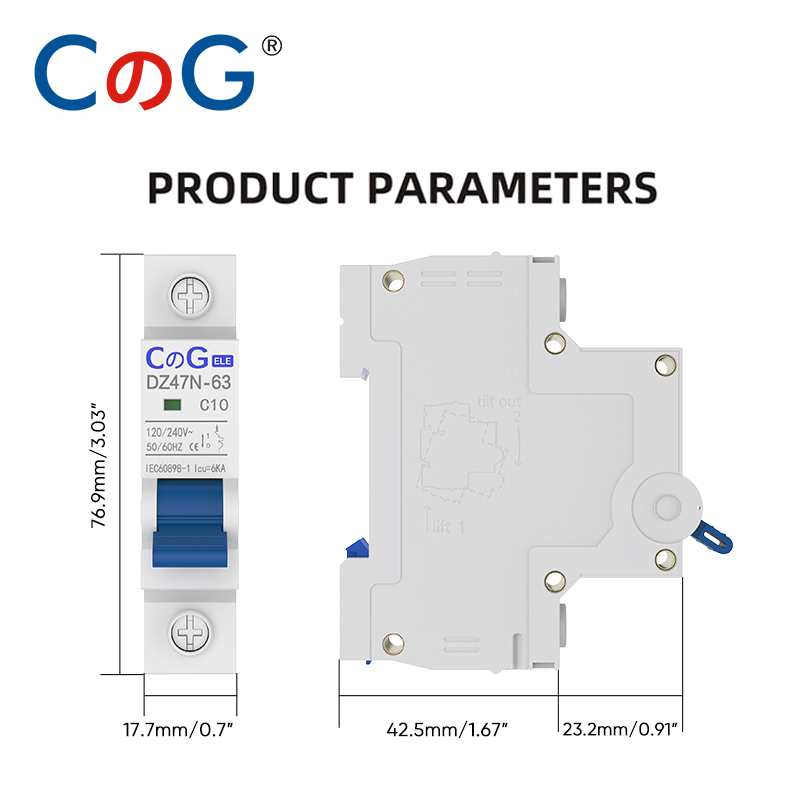

Product Parameter

Product Name: AC Miniature Circuit Breaker 1P 120/240V

Product Material: ABS plastic , Metal , Copper

Poles：1

Uimp：4kV

Rated Operational Voltage：120/240V

Rated Current：6/10/16/20/25/32/40/50/63A

Standard：IEC60898-1

Breaking Capacity：6kA

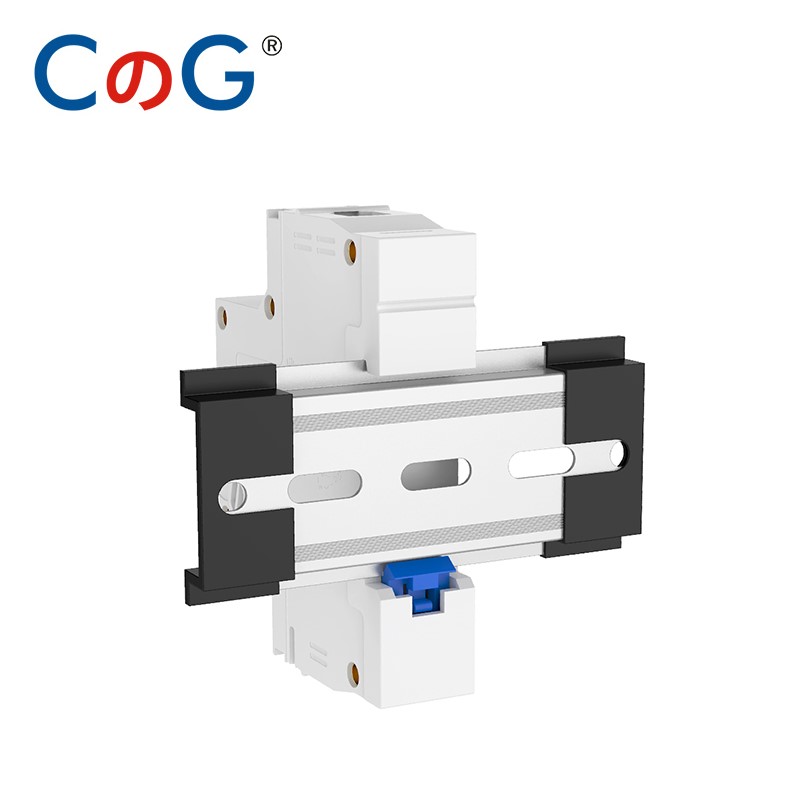

Mounting Type：DIN Rail Mount

Package Contents

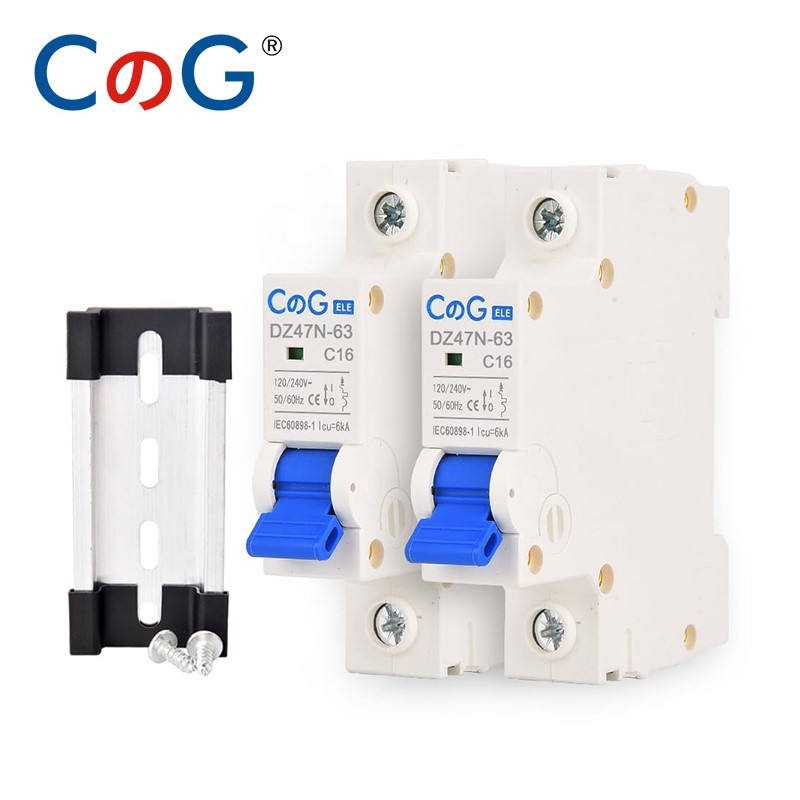

² 2× 1 pole 120/240V AC Circuit Breaker

² 1× 35mm din rail

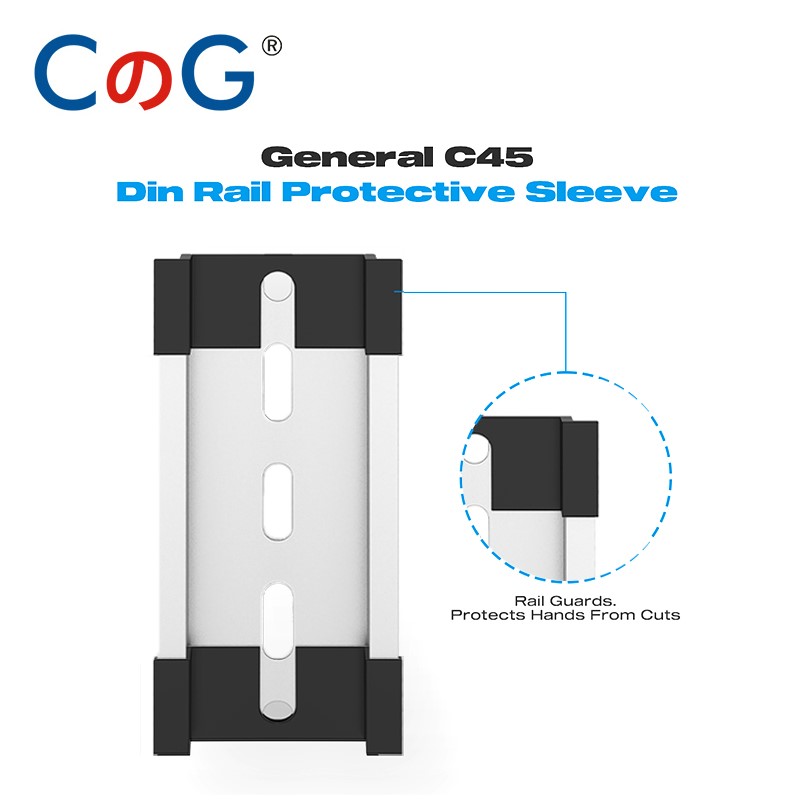

² 2× din rail sleeve

² 2× screw

Product Feature

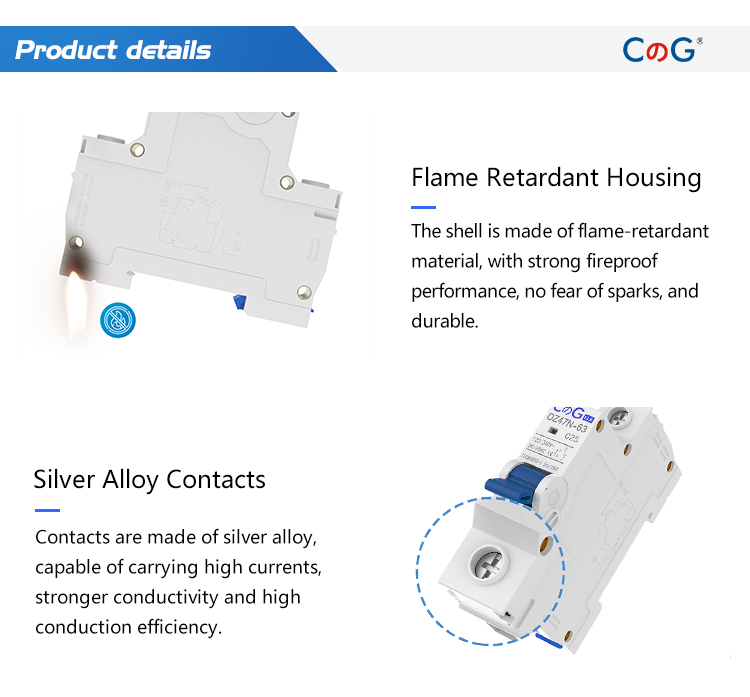

1. The shell is crafted from premium flame-retardant material, ensuring durability and resistance to sparks. It is sturdy and capable of withstanding challenging conditions.

2. It incorporates all-silver contacts known for their exceptional conductive efficiency, further ensuring optimal electrical performance in critical applications.

3. This solution offers comprehensive protection for distribution facilities by preventing damage from overload and short circuits. Additionally, it serves as a reliable control and isolation device.

4. The AC miniature circuit breaker incorporates an innovative magnetic system. This system significantly improves the efficiency of arc extinguishing, enhancing safety and reliability.

5. Widely used in distribution boxes, distribution systems and other 50/60hz AC power system.
