1500A

• Parameters

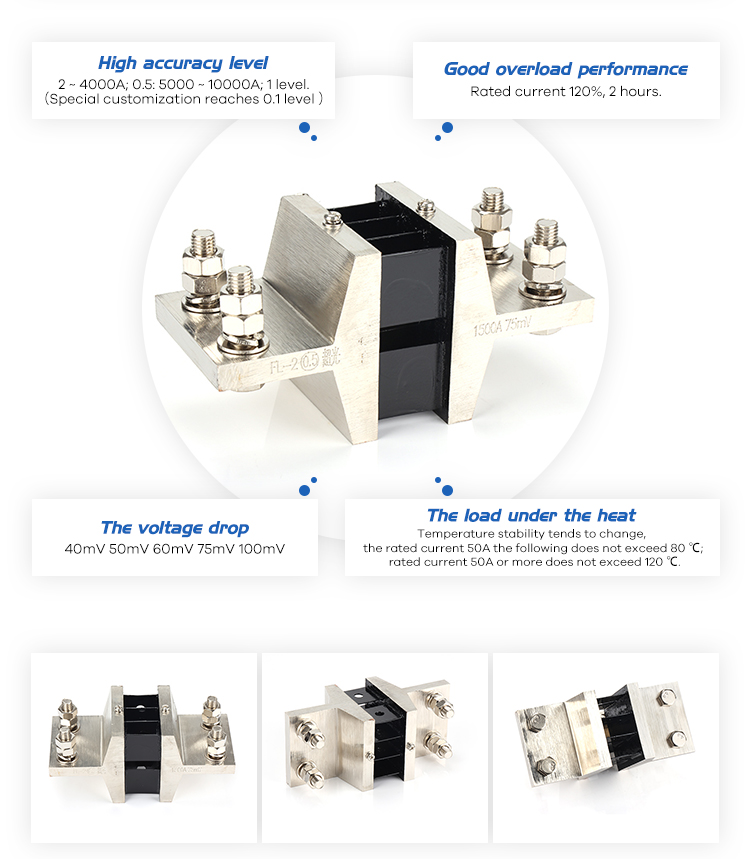

• Features

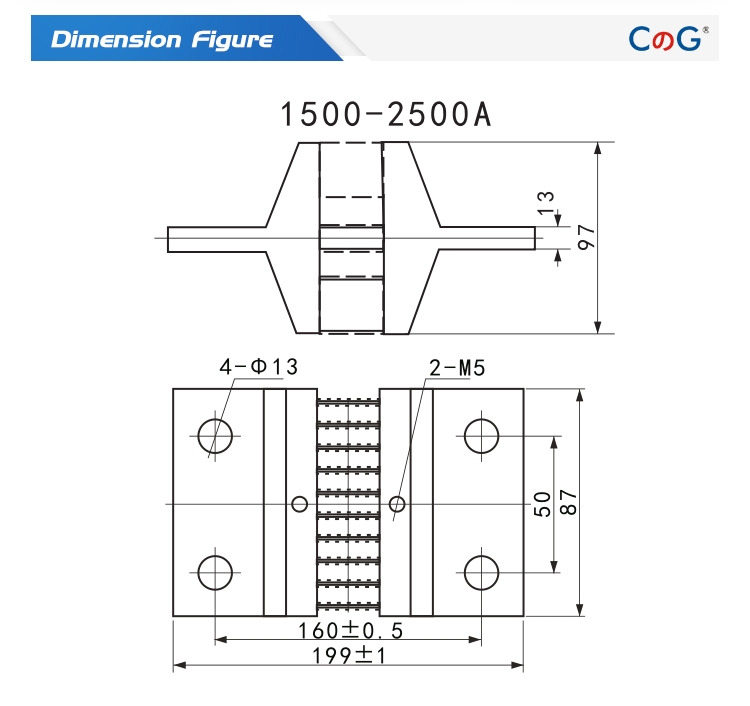

• Dimension Figure
• Package
• Wiring Diagram
• Video

There are too many models of the shunt,

please consult If you want other voltage or customized size.

Color	Black&Silver Or Yellow
Current Rating	1500A (1A-10000A can be customized)
Operating Temperature	-40°C ~+60°C
Voltage Drop	50mV/60mV/75mV/100mV (costomized)
Accuracy Class	0.5/0.2(Customized 0.1)
Material	Brass+Manganin
Overload Capacity	120% Of Rated Current For 2H
Function	Are Used To Multiply The Measuring Range Of Current Of Measuring Instruments.
Application	Use For DC Digital Amp Meter
