100A-500A

• Parameters
• Features

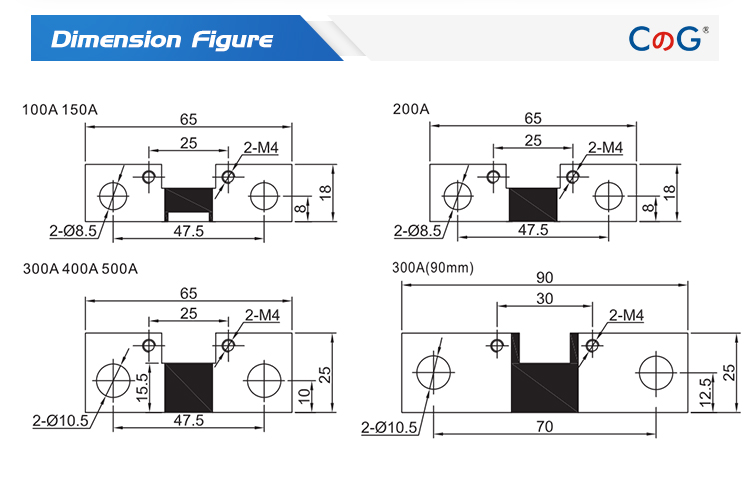

• Dimension Figure
• Package
• Wiring Diagram
• Video

There are too many models of the shunt,

please consult If you want other voltage or customized size.

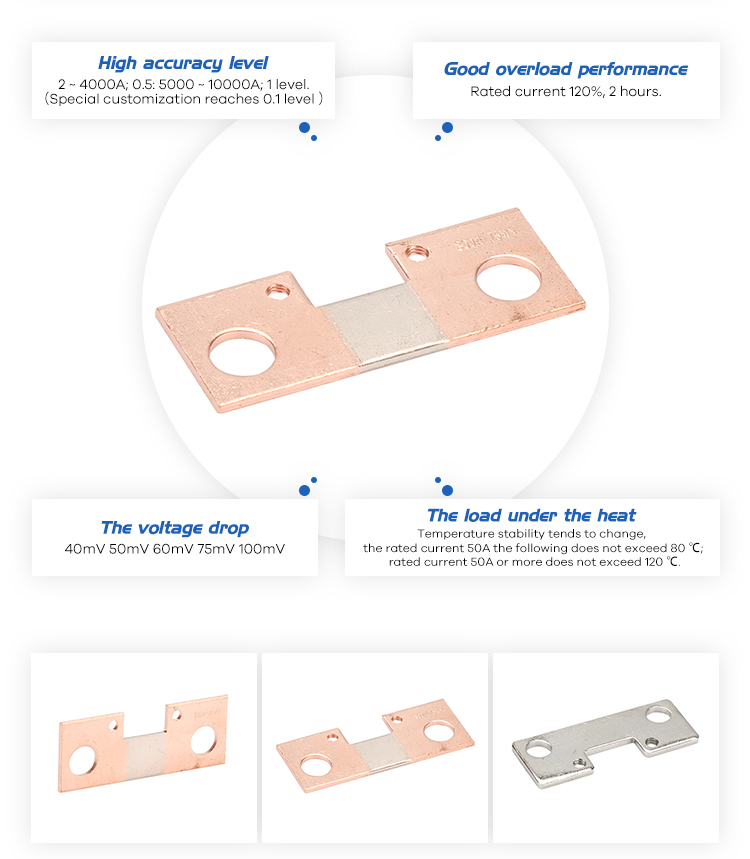

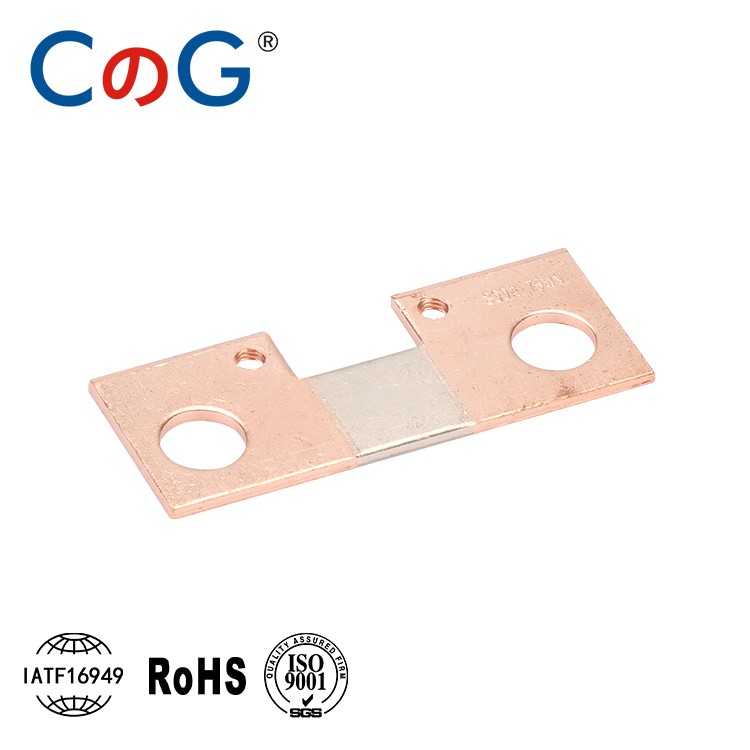

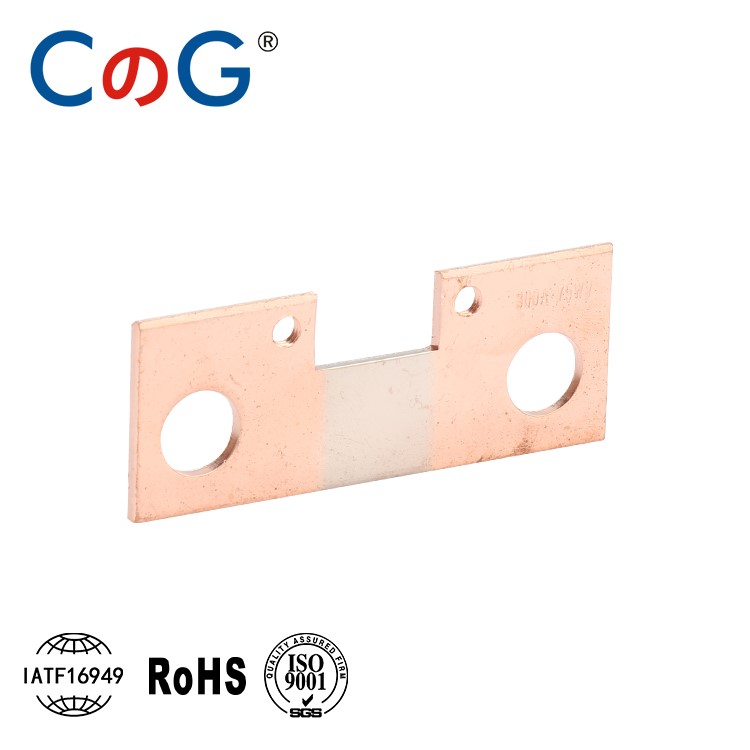

Color	Red Copper&Silver

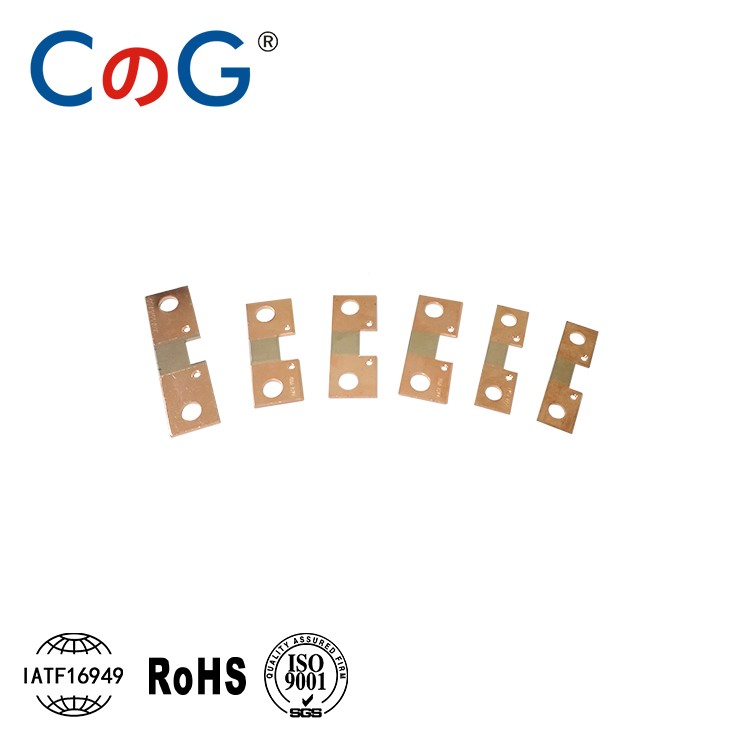

Current Rating	100A 150A 200 A 300A 400A 500A
Operating Temperature	-40°C ~+60°C
Voltage Drop	75mV
Accuracy Class	0.5
Material	Red Copper+Manganin
Overload Capacity	120% Of Rated Current For 2H
Function	Are Used To Multiply The Measuring Range Of Current Of Measuring Instruments.
Application	Use For DC Digital Amp Meter
